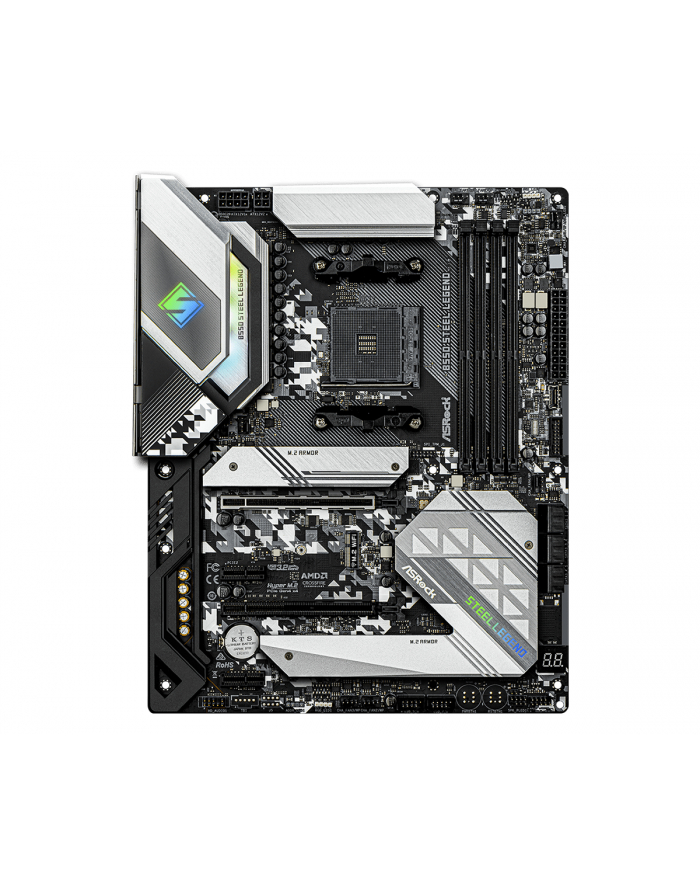

asrock Płyta główna B550 Steel Legend AM4 4DDR4 HDMI/DP M.2 ATX

B550 Steel Legend Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors 14 Power Phase Design, Digi Power, Dr. MOS Supports DDR4 4733+ (OC) 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: HDMI, DisplayPort AMD CrossFireX™ 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3) 2 USB 3.2 Gen2 (Rear Type A+C), 5 USB 3.2 Gen1 (2 Front, 2 Rear, 1 Front Type-C) Dragon 2.5G LAN TECHNICAL SPECIFICATIONS Unique Feature ASRock USB 3.2 Gen2- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 60A Power Choke- 50A Dr.MOS- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCB- 2oz Copper PCB2.5G LANASRock Steel Slot Gen4ASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4)ASRock Ultra USB PowerASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop CPU - Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*- Digi Power design- 14 Power Phase design *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G. Chipset - AMD B550 Memory - Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- AMD Ryzen series CPUs (Matisse) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- Max. capacity of system memory: 128GB**- Supports Extreme Memory Profile (XMP) memory modules- 15µ Gold Contact in DIMM Slots Graphics - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*- DirectX 12, Pixel Shader 5.0- Shared memory default 2GB. Max Shared memory supports up to 16GB.**- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz- Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)- Supports HDR (High Dynamic Range) with HDMI 2.1- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports- Supports Microsoft® PlayReady *Actual support may vary by CPU **The Max shared memory 16GB requires 32GB system memory installed. Slots AMD Ryzen series CPUs (Matisse)- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*AMD Ryzen series APUs- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*- 2 x PCI Express 3.0 x1 Slots- Supports AMD Quad CrossFireX™ and CrossFireX™- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module- 15µ Gold Contact in VGA PCIe Slot (PCIE1) *Supports NVMe SSD as boot disks Storage - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)**- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)** *M2_2 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled. **Supports NVMe SSD as boot disksSupports ASRock U.2 Kit LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE Connector - 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 2 x RGB LED Headers*- 2 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector (15µ Gold Audio Connector)- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)- 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)- 1 x Dr. Debug with LED *Support in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power. *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use. Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- 120dB SNR DAC with Differential Amplifier- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)- Pure Power-In- Direct Drive Technology- PCB Isolate Shielding- Impedance Sensing on Rear Out port- Individual PCB Layers for R/L Audio Channel- Gold Audio Jacks- 15µ Gold Audio Connector- Nahimic Audio Rear panel I/O - 2 x Antenna Mounting Points- 1 x PS/2 Mouse/Keyboard Port- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x Optical SPDIF Out Port- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)- 4 x USB 2.0 Ports (Supports ESD Protection)*- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *Ultra USB Power is supported on USB_34 ports.ACPI wake-up function is not supported on USB_34 ports. Software and UEFI Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC*UEFI- ASRock Full HD UEFI- ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar BIOS - 256Mb AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustment Accessories - Quick Installation Guide, Support CD- 2 x SATA Data Cables- 3 x Screws for M.2 Sockets- 2 x Standoffs for M.2 Sockets Hardware Monitor - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, CPU VDD 1.8V Operating System - Microsoft® Windows® 10 64-bit Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm- 2oz Copper PCB Certifications - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Budowa: ATX
Chipset: AMD B550
CPU-Kompatybilność: Ryzen 4000G,
VRM: 14 wirtualnych faz
RAM: 4x DDR4 DIMM, dual PC4-37866U/?DDR4-4733 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 2x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4, 2280/?2260/?2242/?2230), 1x M.2/?M-Key (PCIe 3.0 x2/?SATA, 22110/?2280/?2260/?2242/?2230), 1x M.2/?E-Key (PCIe, 2230)
Złącza zewnętrzne: 1x HDMI 2.1, 1x DisplayPort 1.4, 1x USB-C 3.1 (B550), 1x USB-A 3.1 (B550), 2x USB-A 3.0, 4x USB-A 2.0, 1x 2.5GBase-T (Realtek RTL8125B-CG), 5x wtyczka jack, 1x Toslink, 1x combo PS/?2
Złącza wewnętrzne: 1x USB-C 3.0 Key-A Header, 1x USB 3.0 Header (2x USB 3.0), 2x USB 2.0 Header (4x USB 2.0), 6x SATA 6Gb/s (B550), 1x TPM-Header, 1x Speaker-Header
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 1x Wentylatory CPU/?pompa 4-Pin, 5x wentylator/?pompa 4-Pin
Header Oświetlenie: 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 2x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A)
Przyciski/przełączniki: brak
Audio: 7.1 (Realtek ALC1220)
Grafika: CPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B550)
Multi GPU: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
Oświetlenie: RGB, 2 Strefy (chłodzenie chipsetu, I/?O-przykrycie)
BIOS: 1x 32MB (256Mb)
Cechy dodatkowe: Audio+solid capacitors, dioda diagnostyczna (wyświetlacz segmentowy), I/?O-zaślepka zintegrowany, 2x pasywne chłodzenie M.2
Gwarancja producenta: trzy lata (realizacja przez sklep)
