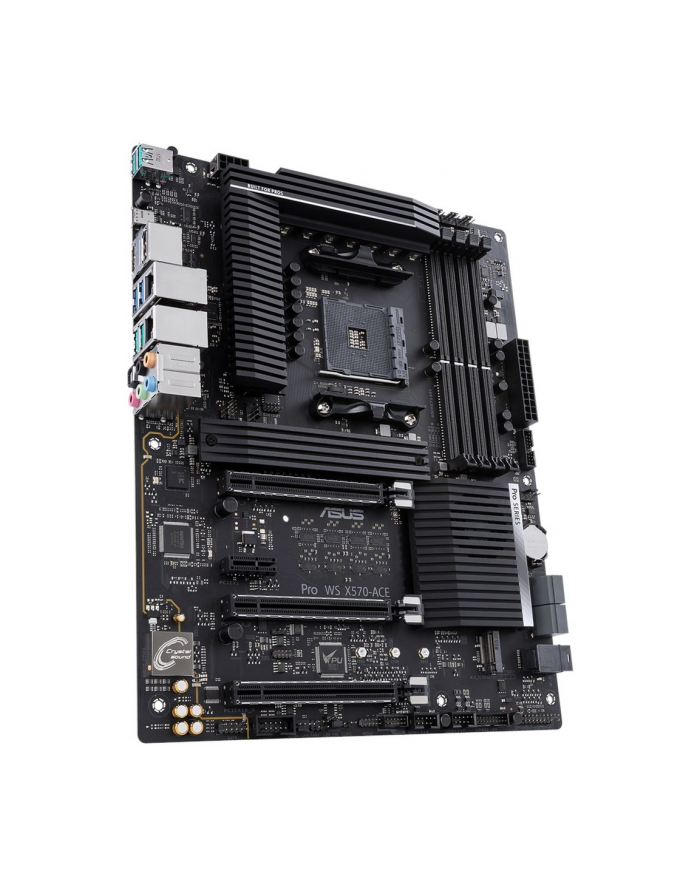

ASUS PRO WS X570-ACE - Socket AM4 - motherboard

PRIME X570-P AMD AM4 ATX motherboard with PCIe Gen4, dual M.2, HDMI, SATA 6Gb/s and USB 3.2 Gen 2 Enhanced power solution: Components provide better power efficiency Industry-leading cooling options: Comprehensive controls for fans and AIO pump, via Fan Xpert 4 or the acclaimed UEFI ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking Next-gen connectivity: Supreme flexibility with PCIe Gen 4 support, dual M.2 support, USB 3.2 Gen 2 ports Aura Sync RGB header: Synchronize RGB header with a vast portfolio of compatible PC gear, including next-gen addressable RGB strips TECHNICAL SPECIFICATIONS CPU AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors * Refer to www.asus.com for CPU support list* Due to CPU limitation, CPU cores supported varies by processors. Chipset AMD X570 Memory 3rd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory 2nd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors4 x DIMM, Max. 128GB, DDR4 MHz Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).* The maximum memory capacity supported vary depending on the CPU you installed. Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors VGA output support : HDMI port- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz Multi-GPU Support 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics ProcessorsSupports AMD 2-Way CrossFireX™ Technology Expansion Slots 3rd Gen AMD Ryzen™ Processors1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen™ Processors1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset1 x PCIe 4.0 x16 (max at x4 mode) 3 x PCIe 4.0 x1 Storage 3rd Gen AMD Ryzen™ Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices supportAMD X570 chipset: 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support6 x SATA 6Gb/s port(s)Support Raid 0, 1, 10 LAN Realtek® RTL8111HASUS LAN Guard Audio Realtek® S1200A 8-Channel High Definition Audio CODEC *- Supports : Jack-detection, Front Panel Jack-retasking- Front panel audio connector (AAFP)Audio Feature:- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity* Choose the chassis with HD audio module in front panel to support 8-channel audio output. USB Ports 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors: 2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A *)3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors: 2 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A)AMD X570 chipset: 2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A)AMD X570 chipset: 4 x USB 3.2 Gen 1 port(s) (4 at mid-board)AMD X570 chipset: 5 x USB 2.0 port(s) (2 at back panel, , 3 at mid-board)* The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen™ Processors Special Features ASUS 5X Protection III:- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM - Digital power design with Dr. MOS- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protectionASUS SafeSlot - Protect your graphics card Investment ASUS OptiMem:- Improved DDR4 StabilityASUS EPU:- EPU AURA:- Aura RGB Strip Headers- Aura Control- Addressable Gen 2 HeaderASUS Exclusive Features:- AI Suite 3- Ai Charger - Armoury CrateASUS Quiet Thermal Solution:- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink- ASUS Fan Xpert 4ASUS EZ DIY:- ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ ModeASUS Q-Design:- ASUS Q-Slot- ASUS Q-DIMM Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)1 x HDMI1 x LAN (RJ45) port(s)2 x USB 2.0 3 x Audio jack(s)2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A *)* The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen™ Processors Internal I/O Connectors 2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)2 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)1 x SPI TPM header1 x COM port(s) connector(s)6 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)3 x Chassis Fan connector(s) (3 x 4 -pin)1 x PCH_FAN (1 x 4 -pin)1 x AIO_PUMP connector (1 x 4 -pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s) 1 x Clear CMOS jumper(s)2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports Accessories User's manualI/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x Extension cable for Addressable LED BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability WOL by PME, PXE Operating System Windows ® 10 64-bit Form Factor ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Budowa: ATX
Chipset: AMD X570
CPU-Kompatybilność: Ryzen 3000, Ryzen 3000G/GE, Ryzen 2000, Ryzen 2000G/GE, TDP-Limit: 105W (Producent)
VRM: 8 rzeczywistych faz (6+2), PWM-Kontroler: ASP1405 (IR35201) (max. 8 faz)
MOSFETs CPU: 12x 60A IR3555
MOSFETs SoC: 2x 60A IR3555
RAM: 4x DDR4 DIMM, dual PC4-35200U/?DDR4-4400 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 3x PCIe 4.0 x16 (1x x16, 2x x8), 1x PCIe 4.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x2, 2280/?2260/?2242), 1x U.2 miniSAS HD/?SFF-8643 (PCIe 3.0 x4)
Złącza zewnętrzne: 1x HDMI 1.4b (CPU), 1x DisplayPort 1.2 (CPU), 1x USB-C 3.1 (X570), 4x USB-A 3.1 (X570), 2x USB-A 3.0, 2x Gb LAN (Intel I211-AT/?Realtek RTL8117), 5x wtyczka jack, 1x Toslink
Złącza wewnętrzne: 2x USB 3.0, 4x USB 2.0, 4x SATA 6Gb/s (X570), 1x port szeregowy, 1x TPM-Header
Header Chłodzenie: 2x Wentylatory CPU 4-Pin, 3x wentylator 4-Pin, 1x Pompa AIO 4-Pin
Header Oświetlenie: brak
Przyciski/przełączniki: brak
Audio: 7.1 (Realtek ALC1220)
Poziom RAID: 0/?1/?10 (X570)
Multi GPU: NVIDIA 2-Way-SLI (x8/?x8), AMD 3-Way-CrossFireX (x8/?x8, x8/?x8/?x8)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
Grafika: CPU
Oświetlenie: brak
Cechy dodatkowe produktu: AMD X570 z Wentylatory, Audio+solid capacitors, dioda diagnostyczna (LED-wskaźniki), 1x pasywne chłodzenie M.2
Gwarancja producenta: trzy lata (realizacja przez sklep)
Uwaga: pisowania USB


ASUS Pro WS X570-ACE. Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 5, 3rd.... Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2,PCI Express 3.0,SATA III, Obsługiwane rodzaje dysków: HDD & SSD. Obsługa przetwarzania równoległego: 2-Way SLI,3-Way CrossFireX. Wersja HDMI: 1.4b
