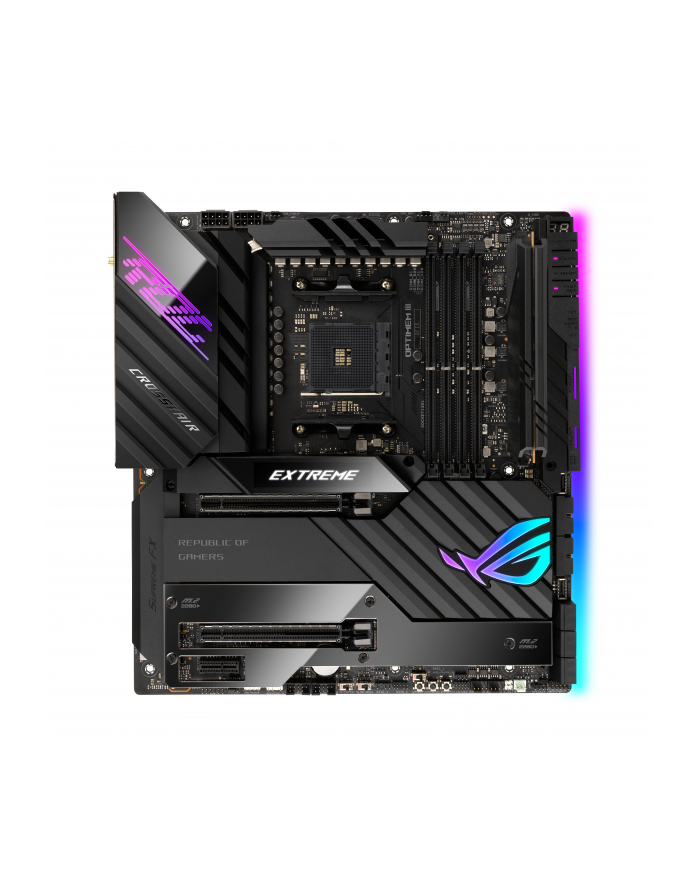

ASUS ROG CROSSHAIR VIII EXTREME ROG AM4 X570 DDR4 5xM.2 6xSATA OLED eATX MB

ROG CROSSHAIR VIII EXTREME AMD X570 EATX gaming motherboard with 18+2 power stages, five M.2 slots, USB 3.2 Gen 2x2 front-panel connector with PD 3.0 60 W support, USB 3.2 Gen 2 front-panel connector, dual Thunderbolt™ 4, Marvell® AQtion 10 Gb Ethernet, Intel® 2.5 Gb Ethernet, PCIe® 4.0, onboard WiFi 6E and Aura Sync RGB lighting AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; also supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed Comprehensive thermal design: Enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, five M.2 heatsinks with embedded backplates and ROG Water-Cooling Zone. Robust power delivery: 18+2 power stages rated for 90 A, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors High-performance connectivity: USB 3.2 Gen 2x2 front-panel with PD3.0 60W fast charging, onboard WiFi 6E, Marvell® AQtion 10 Gb Ethernet, Intel® 2.5 Gb Ethernet, and ASUS LANGuard. Industry-leading gaming audio: ROG SupremeFX ALC4082 with?ESS® ES9018Q2C DAC and the bundled ROG Clavis USB digital-to-analog converter for high-fidelity sound. Unmatched personalization: 2" LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers DIY-friendly design: Bundled ROG Fan Controller, pre-mounted I/O shield, V_Latch switch, BIOS?FlashBack™, M.2 Q-Latch, Q-Code, FlexKey, Q-Connector, SafeSlot and Graphics Card Holder Renowned software: Bundled 1-year AIDA64 Extreme subscription CPU AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors** Refer to www.asus.com for CPU support list. Chipset AMD X570 Chipset Memory AMD Ryzen™ 5000 and 3000 Series Desktop Processors4 x DIMM, max. 128GB, DDR4 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memoryAMD Ryzen™ 5000 G-Series and 4000 G-Series Desktop Processors4 x DIMM, max. 128GB, DDR4 5100(OC) / 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memoryAMD Ryzen™ 2000 Series Desktop Processors4 x DIMM, max. 128GB, DDR4 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memoryAMD Ryzen™ 3000 G-Series and 2000 G-Series Desktop Processors4 x DIMM, max. 128GB, DDR4 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memoryDual Channel Memory Architecture OptiMem III * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. Graphics 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs Expansion Slots AMD Ryzen™ 5000 and 3000 Series Desktop Processors2 x PCIe 4.0 x16 SafeSlots (support x16, x8/x8)AMD Ryzen™ 5000 G-Series, 4000 G-Series and 2000 series Desktop Processors2 x PCIe 3.0 x16 SafeSlots (support x16, x8/x8)AMD Ryzen™ 3000 G-Series and 2000 G-Series Desktop Processors1 x PCIe 3.0 x16 SafeSlot (supports x8)AMD X570 chipset1 x PCIe 3.0 x1 Multi-GPU Support NVIDIA 2-Way SLI® Technology** Support varies with different graphics cards Storage Total supports 5 x M.2 slots and 6 x SATA 6Gb/s portsAMD Ryzen™ 5000 and 3000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280, (supports PCIe 4.0 x4 & SATA modes)M.2_2/3 slot (Key M), type 2242/2260/2280, (supports PCIe 4.0 x4 mode)AMD Ryzen™ 5000 G-Series. 4000 G-Series, 2000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280, (supports PCIe 3.0 x4 & SATA modes)M.2_2/3 slot (Key M), type 2242/2260/2280, (supports PCIe 3.0 x4 mode)AMD Ryzen™ 3000 G-Series and 2000 G-Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280, (supports PCIe 3.0 x4 & SATA modes)AMD X570 chipsetDIMM.2_1/2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)6 x SATA 6Gb/s ports Ethernet 1 x Intel® I225-V 2.5Gb Ethernet1 x Marvell® AQtion AQC113CS 10Gb EthernetASUS LANGuard Wireless & Bluetooth Wi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band*Bluetooth v5.2* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. USB Total 10 ports AMD Ryzen™ 5000, 5000 G-Series, 4000 G-Series and 3000 Series Desktop Processors4 x USB 3.2 Gen 2 ports (4 x Type-A)AMD Ryzen™ 3000 G-Series, 2000 Series and 2000 G-Series Desktop Processors4 x USB 3.2 Gen 1 ports (4 x Type-A)AMD X570 chipset2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support4 x USB 3.2 Gen 2 ports (4 x Type-A)Total 10 ports 1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C®, PD 3.0 up to DC 5V/3A 60W fast charging technology)* 1 x USB 3.2 Gen 2 Front Panel connector(s) (support(s) USB Type-C®)2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports*Please connect the 6-pin PCIe Graphics Card/ PD 3.0 connector to get the full power delivery up to 20V/3A Audio "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- Supports up to 32-Bit/384 kHz playbackAudio Features - SupremeFX Shielding Technology- ESS® SABRE9018Q2C DAC/AMP - LED-illuminated audio jacks- Rear optical S/PDIF out port- Premium Japanese audio capacitors- Audio cover" Back Panel I/O Ports 2 x Thunderbolt™ 4 USB Type-C® port(s)2 x DisplayPort IN ports for Thunderbolt™ 48 x USB 3.2 Gen 2 port(s) (8 x Type-A)1 x ASUS Wi-Fi Module1 x Intel® I225-V 2.5Gb Ethernet port1 x Marvell® AQtion AQC113CS 10Gb Ethernet port5 x LED-illuminated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button1 x Clear CMOS button Internal I/O Connectors Fan and Cooling related1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)2 x 4-pin Chassis Fan header(s)2 x 4-pin Radiator Fan header(s)2 x W_PUMP+ header(s)1 x WB_SENSOR header(s)1 x 2-pin Water In header1 x 2-pin Water Out header1 x 3-pin Water Flow headerPower related 1 x 24-pin Main Power connector2 x 8-pin +12V Power connector1 x 6-pin PCIe Graphics Card/ PD 3.0 connectorStorage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M)6 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®, PD 3.0 up tp DC 5V/3A 60W fast charging technology)1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 portsMiscellaneous3 x AURA Addressable Gen 2 header(s)1 x AURA RGB header(s)1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 6 x ProbeIt Measurement Points1 x ReTry button1 x RSVD switch2 x RSVD header1 x V_Latch1 x Safe Boot button1 x Slow Mode switch 1 x Speaker header1 x Start button1 x 10-1 pin System Panel header1 x Thermal Sensor header Special Features YExtreme OC Kit- FlexKey button- LN2 Mode- Probelt- ReTry button- Safe boot button- Start button- Slow ModeExtreme Engine Digi+- 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch- Q-Code- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution - M.2 heatsink backplate- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- Clear CMOS button- ProCool II- Pre-mounted I/O shield- SafeSlotAURA Sync- ROG AURA sync backplate- AURA RGB header(s)- Addressable Gen 2 RGB header(s)Dual BIOSOLED 2"ASUS HYDRANODE- 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P)- 2 x USB 2.0 port support* (USB_EP1, USB_EP3)* Visit ASUS Website for the latest compatibility list. Software Features ROG Exclusive Software- RAMCache III- ROG CPU-Z- GameFirst VI- Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III- DTS® Sound Unbound - BullGuard Internet Security (1-year full version)ASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (1 year full version)- AURA Creator- AURA Sync- Two-Way AI Noise Cancelation- OLED DisplayAI Suite 3- 5-Way Optimization by Dual Intelligent Processors 5 TPU EPU DIGI+ Power Control Fan Xpert 4 Turbo app DAEMON ToolsMyAsusWinRARUEFI BIOSASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ ModeDynamic OC Switcher BIOS 2 x 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables1 x 1-to-3 ARGB splitter cable2 x 1-to-4 fan splitter cable1 x RGB extension cable3 x ROG weave SATA 6G cables1 x 3-in-1 Thermistor cables packROG Fan Controller1 x ROG Fan Controller1 x Fan EXT PWR cable1 x ARGB input cable 1 x USB input cable 1 x ROG Fan Controller 3M Mounting tape1 x Fan Controller manualROG DIMM.2 with Heatsink1 x ROG DIMM.2 with heatsink1 x M.2 pad for ROG DIMM.22 x M.2 screw package for ROG DIMM.2ROG CLAVIS DAC1 x ROG CLAVIS DAC1 x CLAVIS DAC manualMiscellaneous1 x ASUS Wi-Fi moving antennas 2 x M.2 SSD screw package(s)1 x Q-connector1 x ROG key chain1 x ROG Graphics card holder1 x ROG logo plate stickers1 x ROG screwdriver1 x ROG stickers1 x ROG thank you cardInstallation Media 1 x USB drive with utilities and drivers Documentation1 x User manual Operating System Windows® 11 readyWindows® 10 64bit Form Factor Extended ATX30.5cm x 27.7cm

Typ produktu: płyta główna
EAN: 4711081375852
Kod producenta: 90MB1860-M0EAY0
Gniazdo: AM4
Maksymalna obsługiwana liczba procesorów: 1
System operacyjny: gotowy na Windows 10
Procesor: procesory AMD AM4 4. (Zen 3) 3. generacji (Zen 2). [Ryzen 3 2xxxG (Raven Ridge), Ryzen 5 2xxxG (Raven Ridge), Ryzen 5 2xxx (Pinnacle Ridge), Ryzen 5 2xxxX (Pinnacle Ridge), Ryzen 7 2xxx (Pinnacle Ridge), Ryzen 7 2xxxX (Pinnacle Ridge), Ryzen 3 3xxx (Matisse), Ryzen 3 3xxxG (Picasso), Ryzen 3 3xxxX (Matisse), Ryzen 3 PRO 4xxxG (Renoir), Ryzen 5 3xxx (Matisse), Ryzen 5 3xxxG (Picasso), Ryzen 5 3xxxX (Matisse), Ryzen 5 3xxxXT (Matisse), Ryzen 5 4xxx (Renoir), Ryzen 5 PRO 4xxxG (Renoir), Ryzen 5 PRO 4xxxGE (Renoir), Ryzen 7 3xxx (Matisse), Ryzen 7 3xxxX (Matisse), Ryzen 7 3xxxXT (Matisse), Ryzen 7 PRO 4xxxG (Renoir), Ryzen 7 PRO 4xxxGE (Renoir), Ryzen 9 3xxxX (Matisse), Ryzen 9 3xxxXT (Matisse), Ryzen 5 5xxx (Vermeer), Ryzen 5 5xxxX (Vermeer), Ryzen 5 5xxx (Cezanne) , Ryzen 5 5xxxG (Cezanne), Ryzen 7 5xxxX (Vermeer), Ryzen 7 5xxxG (Cezanne), Ryzen 9 5xxxX (Vermeer)]
Chipset: AMD X570
Gniazda: 2x (w tym: 1x PCIe x16, 1x PCIe x8)
: 1
BIOS: Tak
Współczynnik kształtu: E-ATX
Użyj: komputer osobisty
Zasilanie: ATX12V (24-pinowe + 2x 8-pinowe)
Pamięć: 128 GB
: 4x DDR4
SDRAM DDR4
: DDR4-DDR4 5000(m.c) / 4866(m.m.) / 4800(m.m.) / 4600(m.m.) / 4400(m.m.) / 4266(m.m.) / 4133(m.m.) / 4000(m.m.) / 3866(m.m.) / 3733 (bieganie) / 3600(bieg) / 3466(bieg) / 3400(bieg) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133MHz
: 2
: 8.
: TAk
: 8196 Mbit
Połączenia (zewnętrzne): 8
: Oznaczenie USB 3.2 Gen 1 odpowiada wcześniejszym oznaczeniom USB 3.1 Gen 1 lub USB 3.0.
Oznaczenie USB 3.2 Gen 2 odpowiada wcześniejszym oznaczeniom USB 3.1 Gen 2 lub USB 3.1.
: 2 x wersja 4
: 2
: 1
: 1
: 3
: 1
: 2
: TAk
: TAk
Połączenia (wewnętrzne): 6
: 3
: M
: SATA, PCIe
: 42-80mm
: 1
: 3
: 8.
Połączenia (opcjonalnie): 2
: 2
Domyślny RGB: synchronizacja AURA
Kontroler SATA: AMD X570
bezpośrednio używane poziomy RAID: 0, 1, 10
Kontroler USB: AMD X570
Dźwięk: ROG SupremeFX
Sieć LAN: Intel® I225-V 2,5 GbE
: Marvell® AQtion AQC113CS 10GbE
: 2x2 WiFi 6E
Cechy: Gniazdo SLI, DIMM.2 na maksymalnie 2 moduły M.2, 1 x 2-stykowe złącze Water In, 1 x 2-stykowe złącze Water Out, 1 x 3-stykowe złącze Water Flow
Informacje dodatkowe: W celu obsługi najnowszych rdzeni procesora może być wymagana aktualizacja systemu BIOS. Rzeczywiste połączenie interfejsów PCIe może się różnić w zależności od zainstalowanego procesora.
Waga: 3,4 kg

ASUS ROG Crosshair VIII Extreme. Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen. Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2,SATA III, Obsługiwane rodzaje dysków: HDD & SSD. Obsługa przetwarzania równoległego: 2-Way SLI. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Kontroler LAN: Marvell AQtion AQC113CS,Intel I225-V, Podstawowy standard Wi-Fi: Wi-Fi 6 (802.11ax)
