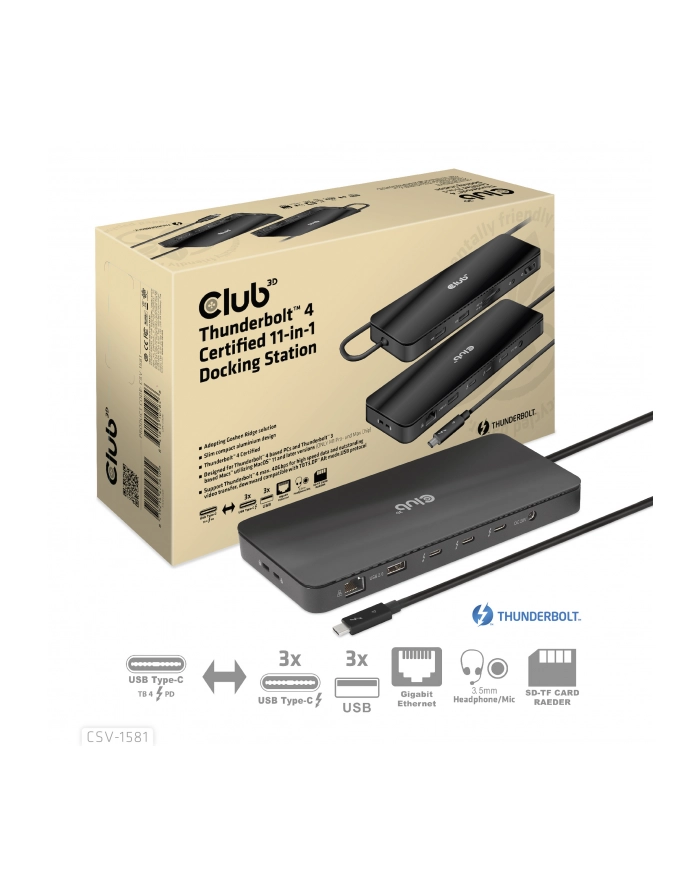

Club 3D HUB USB Club3D Thunderbolt4 11-in-1 HUB (CSV1581)

Thunderbolt 4 Certified 11-in-1 Docking Station Adopting Goshen Ridge solution Slim compact aluminum design Thunderbolt™ 4 Certified Designed for Thunderbolt™ 4 based PCs and Thunderbolt™ 3 based Macs™ utilizing MacOS™ 11 and later versions(ONLY M1 Pro- and Max Chip). Support Thunderbolt™ 4 max. 40Gbps for high speed data and outstanding video transfer, downward compatible with TBT3,DP™ Alt mode, USB protocol 3x Thunderbolt™ 4 downstream ports, allow you to cascade Thunderbolt™ devices 3x Thunderbolt™ 4 downstream ports support USB Gen2 with max 10Gbps data transfer(NO support for PD power adapter) 3x Thunderbolt™ 4 downstream ports support max. 8K30Hz for one video output or dual 4K60Hz Max. The maximum resolution for connecting a single monitor is also 8K30Hz. Self-powered from DC power adapter with max 96W for host, max 140W for host and Dock Support smart power which enables to flexibly distribute power to PC and Hub in real time according to the consumption of connected devices TECHNICAL SPECIFICATIONS OS Support • Windows10™ or above version supported Thunderbolt™ 4 host• MacOS™ 11 or above version supported Thunderbolt™ 3 host(ONLY M1 Pro- and Max Chip) In the box • CSV-1581 Thunderbolt™ 4 Certified 11-in-1 Docking Station• Power Adapter 20V7.5A(150Watt)• QIG, Quick Installation Guide Available Interfaces Upstream: 1x• Thunderbolt™ 4 USB Type-C Male (to host) Support max 96W, 5V/9V/15V@3A, 20V@4.8A Host chargingDownstream:• 3x Support Thunderbolt™ 4 up to 40Gbps, compatible with Thunderbolt™ 3, USB4, DP Alt mode, USB• Allow you to cascade Thunderbolt™ devices• Support max 8K30Hz or dual 4K60Hz video• Each Thunderbolt™ 4 port supports 15W downstream charging for connected device• 2x USB Gen2 x2 Type-A, Max. 10Gbps data transmission, downward compatible with lower versions, Max. 900mA downstream charging per port• 1x USB Gen1 Type-A, Max. 480 Mbps data transmissionMemory Card Slots SD4.0/TF 3.0• 1x SD supports SD4.0 with max 312Mbps• 1x TF supports SD3.0 with max 104Mbps Support 2 card slots to work simultaneously1x Ethernet RJ45• Support Gigabit Ethernet,10M/100M/1000M• Support Wake-On-LAN and Wake-On-WAN• Light indicator indicates the state, no light when no Internet connected, orange light turns on when network connection is established, green light flashes when transmitting data.1x Audio JACK 3.5mm• Stereo output supports 24-bit, 44.1/48/96kHz Sample Rate• Microphone input supports up to 24bit 96kHz Sample Rate1x DC Power Jack• Support smart charging, dynamically distribute power to PC and Hub according to the requirement of the connected devices• Used to connect 20V 150W DC power supply. Compatible with 19V ~ 22V, 150W or higher power DC power supply• Max 140W power for host and the DOCK• Max 96W for host charging Other info • Box size: 26.7 x 15 x 8.2 cm / 10.51 x 5.9 x 3.23"• Dock dimensions: 19 x 8 x 2.2 cm / 7.48 x 3.15 x 0.86"• Power Supply dimensions: 16 x 7.3 x 3.4 cm / 6.3 x 2.87 x 1.34"• Power Cable Length approx.: 1.8 m / 6 ft• Product Weight: 360 gr / 2.7 oz• Power Supply Weight: 720 gr / 25.39 oz• Box Weight: 171 gr / 6.03 oz• Total Weight: 1251 gr / 44.12 oz• Meets ROHS, FCC, and CE EMI requirements In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.

CLUB3D CSV-1581. Technologia łączności: Dokujący, Interfejs hosta: Thunderbolt 4, Maksymalne zasilanie USB: 140 W. Prędkość transferu danych przez Ethernet LAN: 1000 Mbit/s. Kolor produktu: Czarny, Obsługiwane typy kart pamięci: SD
