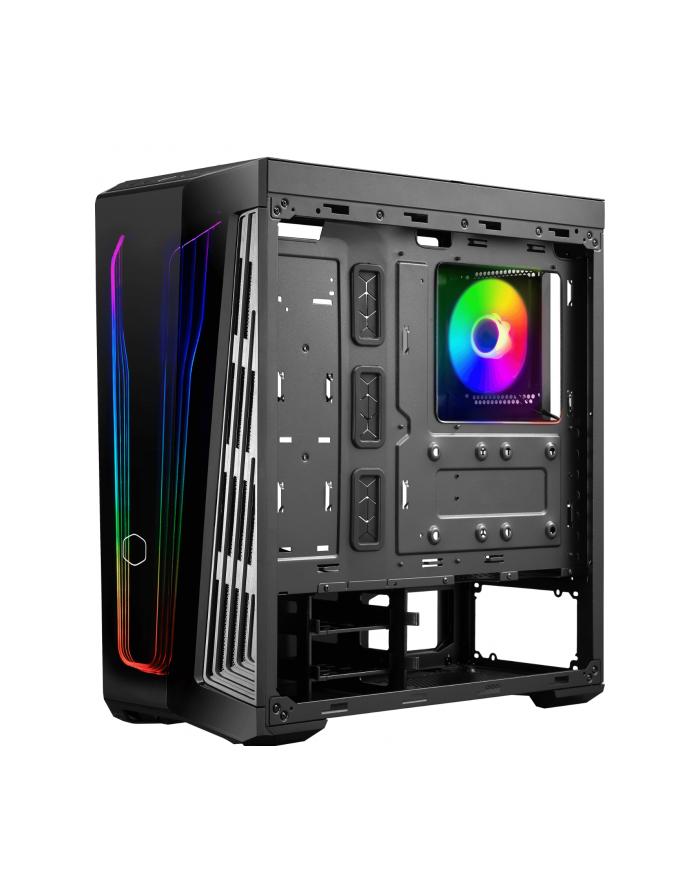

COOLER MASTER Case Masterbox MB540 ARGB Midi tower

The MasterBox 540 A vivid, iridescent design spans the entire front panel of the MasterBox 540. Customizable ARGB strips radiate behind the transparent façade for a stunning display of light. The ARGB strips can be set to match the color scheme of the system inside with an included controller, and will also sync to the motherboard for a limitless potential for customization.A zero-compromise body allows the entire top panel to be removed, making it easier to route large radiators, install fans, and offer better overall access to the build. From aesthetics to component compatibility, the MasterBox 540 amazes in both its appearance and its potential. ARGB Ether Front Panel – Inspired by the design of automotive lighting, the front panel houses ARGB lighting strips paired with a front diffuser. This design element is powered by a pogo pin connector and fused to the DarkMirror finish of the façade, delivering a unique twist on conventional illumination. Standardized ARGB Connector & Controller Included – The ARGB Ether Front Panel can be controlled via software or the included ARGB controller, pre-loaded with unique lighting presets. The controller also comes pre-routed to the RESET/ARGB button in the front panel. Removable Top Panel – The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators. Rich Connectivity – The I/O panel comes with a USB 3.2 (Gen 2) Type-C port, two additional USB 3.2 (Gen 1) ports, and one 3.5mm (audio + mic) headset jack. Screwless & Tool - Free Design TG Side Panel – The tempered glass side panel is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel. Versatile Cooling Options – Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems. Room For Upgrades – Support for up to a 410mm graphics card, a 165mm CPU cooler, and up to a 180mm PSU in length provides room for upgrades to stay ahead of the game. Breathable Power Supply Shroud – The PSU cover is ventilated on top of the power supply location, this allows actively cooled units to be installed either with the fan facing the top or bottom, with the possibility to install passively cooled power supplies. TECHNICAL SPECIFICATIONS Series MasterBox Series Size Mid Tower Available color(s) Black Materials Steel, Mesh, Plastic, Tempered Glass Dimensions (L x W x H) 499.3 x 208.6 x 498mm (incl. Protrusions), 488.3 x 208.6 x 498mm (excl. Protrusions) Volume (exlc. protrusions) 51.87L Motherboard support Mini ITX, Micro ATX, ATX, E-ATX*, (*up to 12” x 10.7” motherboards, may impact cable management feature) Expansion slots 7 5.25" drive bays 0 2.5" / 3.5" drive bays (combo) 2 2.5" drive bays 4 I/O panel 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button Pre-installed fans - Top N/A Pre-installed fans - Front N/A Pre-installed fans - Rear 1x 120mm 650~1800RPM SickleFlow PWM ARGB Fan support - Top 3x 120mm, 2x 140mm Fan support - Front 3x 120mm, 2x 140mm Fan support - Rear 1x 120 mm Radiator support - Top 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm) Radiator support - Front 120mm, 140mm, 240mm, 280mm, 360mm Radiator support - Rear 120mm Clearance - CPU cooler 165mm/6.49" Clearance - PSU 180mm/7.08", 295mm/11.61" (w/ HDD cage removed) Clearance - GFX 410mm/16.1" Dust filters Top, Front, Bottom Power supply support ATX Warranty 2 years

Typ produktu: obudowa typu wieża
Czarny kolor
EAN: 4719512117927
Kod producenta: MB540-KGNN-S00
Projekt: wieża midi
Materiał: stal, siatka, plastik, szkło hartowane
Zestaw okienny: Tak
Wymiary wewnętrzne: maksymalnie 465 mm
: maksymalnie 165 mm
: ATX
: maksymalnie 180mm
Zatoki na dyski: 2 sztuki
: 4 części
: 2 kawałki
Sloty: 7 sztuk
Złącza przednie: 1x audio, 2x USB-A 3.2 Gen 1 (5 Gb/s), 1x USB-C 3.2 Gen 2 (10 Gb/s)
: Oznaczenie USB 3.2 Gen 1 odpowiada wcześniejszemu oznaczeniu USB 3.1 Gen 1 / USB 3.0.
: Oznaczenie USB 3.2 Gen 2 odpowiada wcześniejszemu oznaczeniu USB 3.1 Gen 2 / USB 3.1.
Przód: możliwość zainstalowania wentylatorów 2x 140 mm lub 3x 120 mm
Tył: dostępny 1x wentylator SickleFlow PWM ARGB 120 mm (650-1800 obr./min)
Uwagi: Możliwość zainstalowania wentylatorów 2x 140mm lub 2x 120mm
Oświetlenie: tak, RGB
Złącza RGB: adresowalne nagłówki RGB
Standard RGB: AURA Sync, Mystic Light, RGB Fusion, RGB LED
Możliwe chłodzenie wodą: Tak
: Góra: 120mm, 140mm, 240mm, 280mm, 360mm, (zalecana grubość grzejnika: 55mm), przód: 120mm, 140mm, 240mm, 280mm, 360mm, tył: 120mm
Więcej informacji: Listwy ARGB można dostroić do schematu kolorów systemu wewnątrz za pomocą dołączonego kontrolera, a także synchronizować się z płytą główną, zapewniając nieograniczone możliwości dostosowywania.
Wymiary: Szerokość: 208,6 mm x Wysokość: 498 mm x Głębokość: 499,3 mm
Waga: 7,7 kg

Cooler Master MasterBox 540. Układ: Komputer stacjonarny, Model: PC, Materiały: Siatka, Plastik, Stal, Szkło hartowane. Obsługa zasilania z czynników: ATX. Obsługiwana średnica wentylatorów przednich: 120,140 mm, Zainstalowane wentylatory tylne: 1x 120 mm, Obsługiwana średnica wentylatorów tylnych: 120 mm. Obsługuje rozmiary napędu dysku twardego: 3.5". Szerokość produktu: 208,6 mm, Głębokość produktu: 499,3 mm, Wysokość produktu: 498 mm
