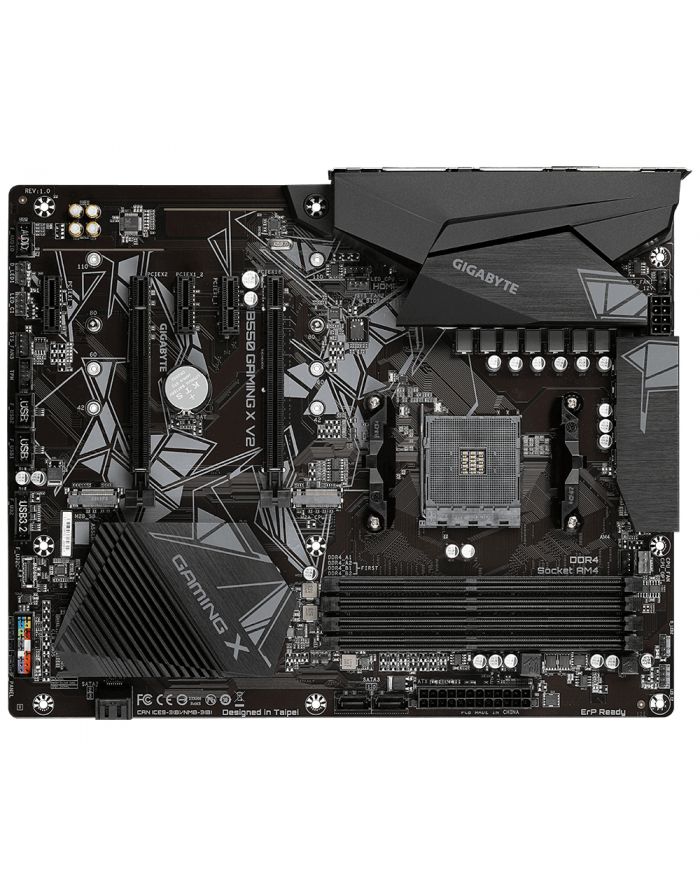

GIGABYTE B550 GAMING X V2 AM4 DDR4 2xM.2 4xSATA HDMI ATX MB

B550 Gaming X V2 (rev. 1.0) AMD B550 Gaming Motherboard with 10+3 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2, GIGABYTE Gaming LAN with Bandwidth Management, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs Ultra Durable™ PCIe 4.0 Ready x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management Front USB 3.2 Gen1 Type-C™ and HDMI & DVI-D for Multiple Display High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality RGB FUSION 2.0 support Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Anti-Sulfur Resistors Design TECHNICAL SPECIFICATIONS CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors(Please refer "CPU Support List" for more information.) Chipset AMD B550 Memory - 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory- 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules- 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules- Dual channel memory architecture- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules- Support for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.) Audio - Realtek® ALC887 codec- High Definition Audio- 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. LAN Realtek® GbE LAN chip (1000 Mbit/100 Mbit) Expansion Slots 1? x PCI Express x16 slot (PCIEX16), integrated in the CPU:- 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode- 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:- Supporting PCIe 3.0 x2 mode 3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset:- Supporting PCIe 3.0 x1 mode Onboard Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.Maximum shared memory of 16 GB Storage Interface 1? x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:- 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs- 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:- Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset:- Support for RAID 0, RAID 1, and RAID 10 USB Chipset:1 x USB 3.2 Gen 2 Type-A port (red) on the back panel3 x USB 3.2 Gen 1 ports on the back panel Chipset:1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header2 x USB 3.2 Gen 1 ports available through the internal USB header6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C™ port, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x DVI-D port1 x HDMI port3 x USB 3.2 Gen 1 ports1 x USB 3.2 Gen 2 Type-A port (red)1 x Q-Flash Plus button1 x RJ-45 port3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring - Voltage detection- Temperature detection- Fan speed detection- Water cooling flow rate detection- Overheating warning- Fan fail warning- Fan speed control* Whether the fan speed control function is supported will depend on the cooler you install. BIOS - 1 x 256 Mbit flash- Use of licensed AMI UEFI BIOS- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features - Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information Viewer- Support for Q-Flash Plus- Support for Q-Flash- Support for Xpress Install Bundled Software - Norton® Internet Security (OEM version)- Realtek® 8118 Gaming LAN Bandwidth Control Utility Operating System Support for Windows 10 64-bit Form Factor ATX Form Factor; 30.5cm x 24.4cm Remark - Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Gigabyte B550 Gaming X V2. Producent procesora: AMD, Gniazdko procesora: Socket AM4, Procesor: AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD.... Obsługiwane rodzaje pamięci: DDR4-SDRAM, Typ slotów pamięci: DIMM, Obsługiwane prędkości zegara pamięci: 2133,2400,2667,2933,3200 Mhz. Wspierane interfejsy dysków twardych: M.2, Serial ATA III, Obsługiwane rodzaje dysków: HDD & SSD. Pamięć karty graficznej podsystemu graficznego: 16 MB. Rodzaj interfejsu sieci Ethernet: 100 Gigabit Ethernet, Gigabit Ethernet
