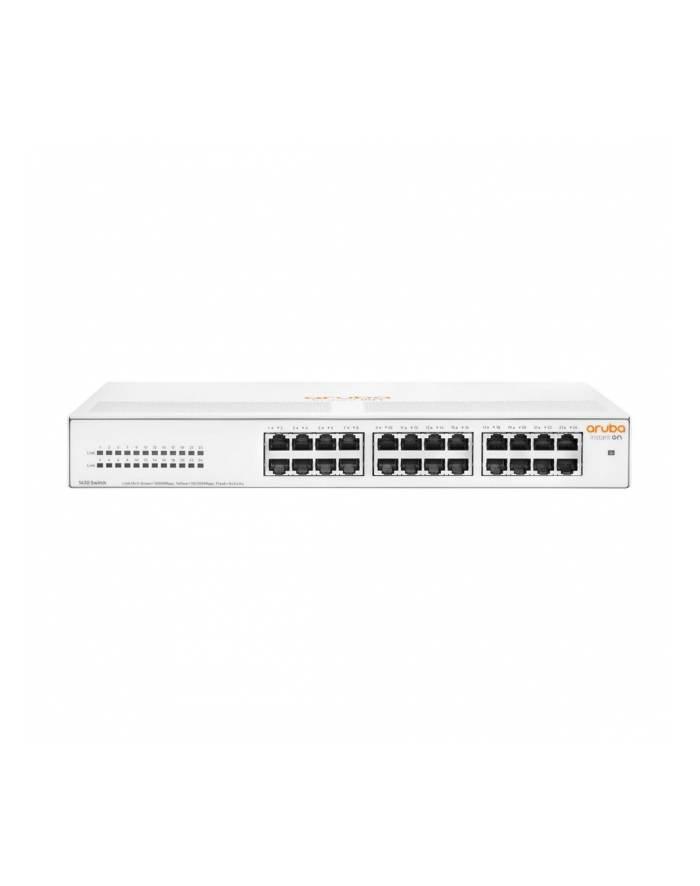

hewlett-packard 24-częściowy przełącznik HP Enterprise Aruba Instant ON 1430 24G RM

Aruba Instant On 1430 24G Switch Aruba Instant On 1430 24G Switch (R8R49A) I/O ports and slots 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only Physical Characteristics Dimensions 225(d) x 340(w) x 44(h) mm Weight 4.20 lb (1.91 kg) Processor and Memory 128Kb EEPROM; Packet buffer size: 2.0 Mb Performance 100 Mb latency < 2.7 µSec 1000 Mb latency < 1.80 µSec Throughput (Mpps) 35.71 Mpps Capacity 48 Gbps MAC address table size 8192 entries Reliability MTBF (years) 199.5 Environment Operating temperature 32°F to 104°F (0°C to 40°C) Operating relative humidity 15% to 95% @ 104°F (40°C) non-condensing Nonoperating/ storage temperature -40°F to 158°F (-40°C to 70°C) up to 15000 ft Nonoperating/ storage relative humidity 15% to 90% @ 149°F (65°C) non-condensing Altitude up to 10,000 ft (3 km) Acoustics Fanless Electrical Characteristics Frequency 50Hz/60Hz AC voltage 100-127VAC / 200- 240VAC Current 0.3A / 0.2A Maximum power rating 11.7W Idle power 3.2W PoE power - Power Supply Internal Power Supply Safety EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 3rd. Ed. EN/IEC 60825- 1:2014 Class 1 Emissions EN 55032:2015/ CISPR 32, Class A FCC CFR 47 Part 15: 2018, Class A ICES-003, Class A VCCI-32, Class A CNS 13438, Class A KS C 9832, Class A AS/NZS CISPR 32, Class A Immunity BS/EN 55035, CISPR 35, KS C 9835 Generic EN 55035, CISPR 35 EN EN/IEC 61000-4-2 ESD EN/IEC 61000-4-3 Radiated EN/IEC 61000-4-4 EFT/Burst EN/IEC 61000-4-5 Surge EN/IEC 61000-4-6 Conducted EN/IEC 61000-4-8 Power frequency magnetic field EN/IEC 61000-4-11 Voltage dips and interruptions EN/IEC 61000-3-2 Harmonics EN /IEC 61000-3-3 Device Management Unmanaged Mounting Mounting positions and supported racking Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting using the brackets provided Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down Transceivers
