Hewlett Packard Enterprise 6200M R8Q70A

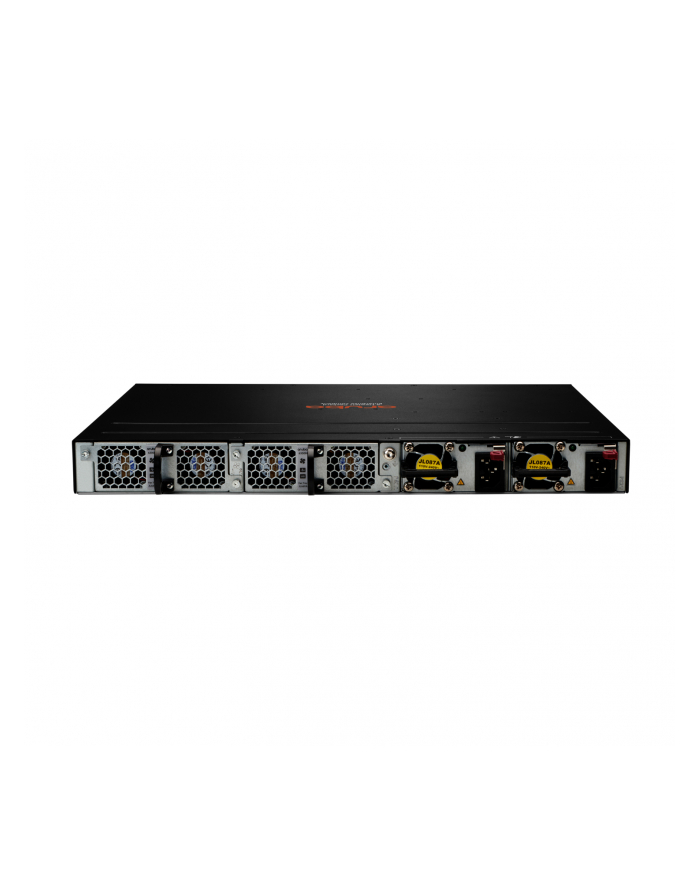

HPE Aruba Networking CX 6200M 48G Class4 PoE 4SFP+ Switch HPE Aruba Networking 6200M 48G Class4 PoE 4SFP+ SwitchMust Select PSU Min1 / Max2 (680W JL086A, 1050W JL087A)Includes 1 Fan tray (JL669B), with 1 open slot with blank coverMin=0 Max = 4 SFP/SFP+ 1/10G Transceiver1U - Height HPE Aruba Networking 6200M 48G Class4 PoE 4SFP+ Switch (R8Q70A) Specifications Description 48x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port4x 1G/10G SFP ports (2x LRM; 2x LRM/MACSec 256)Supports PoE Standards IEEE 802.3af, 802.3at1x RJ-45 Console Port 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port Power supplies 2 field-replaceable, hotswappable power supply slots 1 minimum power supply required (ordered separately) Supported PSUs JL086A JL087A Max PoE Power: 1440W Fans Switch has two fan tray slots; Switch includes one fan trays. Min 1 fan tray required. Optional second fan tray ordered separately. Fan trays are field replaceable and hotswappable. Each fan tray contains two fans. Physical characteristics Dimensions (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2") Configuration Weight 6.15 kg (13.56 lbs) Additional Specifications CPU Quad Core ARM CortexTM A72 @ 1.8GHz Memory and Flash 8 GB DDR4 16 GB eMMC Packet Buffer 6 MB Packet Buffer Memory Performance Model Switching Capacity 176 Gbps Model Throughput Capacity Up to 130.9Mpps Average Latency (LIFO-64-bytes packets) 1Gbps: 3.6µSec 10Gbps: 2.9µSec Stack Size 8 members (with other 24/48p 6200F and 6200M switches only; No stacking support with 12p 6200F switches) Max. Stacking Distance Up to 10 kms with long range transceivers Stacking Bandwidth 40 Gbps Switched Virtual Interfaces (dual stack) 256 IPv4 Host Table (ARP) 8,000 IPv6 Host Table (ND) 8,000 IPv4 Unicast Routes 2,000 IPv6 Unicast Routes 2,000 MAC Table Capacity 32,768 IGMP Groups 1,000 MLD Groups 1,000 IPv4/IPv6/MAC ACL Entries (ingress) 1,000/1,000/1,000 IPv4/IPv6/MAC ACL Entries (egress) 512/256/512 Environment Operating Temperature 32°F to 113°F (0°C to 45°C) up to 5,000 ft; derate -1°C for every 1000 ft from 5,000 ft to 10,000 ft. Can support excursion to 131°F (55°C) for short periods of time. Operating Relative Humidity 15% to 95% @ 104°F (40°C) non-condensing Non-Operating -40°F to 158°F (-40°C to 70°C) up to 15000 ft Non-Operating Storage Relative Humidity 15% to 90% @ 149°F (65°C) non-condensing Max Operating Altitude 10,000 feet (3.048 km) Max Max Non-Operating Altitude 15,000 feet (4.6 km) Max Acoustic Sound Power, LWAd = 5.0 Bel Sound Pressure, LpAm (Bystander) = 34.0 dB Primary Airflow Front and side to back Electrical Characteristics Frequency 50Hz/60Hz AC Voltage JL086A PSU: 100V-240V JL087A PSU: 110V-240V Current JL086A PSU: 8A/3.5A JL087A PSU: 12A/5A 80plus.org Certification JL086A PSU: Gold JL087A PSU: Platinum Maximum heat dissipation BTU/hr and kj/hr info needed 249 BTU/hr 263 kj/hr Power Consumption (230 VAC) With JL086A PSU: Idle: 60W 100% Traffic Rate: 76W With JL087A PSU: Hibernation (0 rpm fan): 17W Idle: 59W 100% Traffic Rate: 74W Safety Europe: EN 62368-1:2014+A11:2017 EN 62368-1:2020+A11:2020 UK: BS EN 62368-1:2014 + A11:2017 2nd Ed BS EN 62368-1:2020 + A11:2020 3rd EdUS: UL 62368-1, 3rd Ed.,Canada: CAN/CSA C22.2 No. 62368-1:19, 3rd Ed.Worldwide: IEC 62368-1:2014 2nd Ed. IEC 62368-1: 2018 3rd Ed.Taiwan: CNS-15598-1:2020China: GB 4943.1:2022 Emissions Europe: EN 55032:2015 +A11:2020, Class A EN 61000-3-2:2019 EN 61000-3-3:2013US: FCC 47 CFR part 15B: Class ACanada: ICES-003 Issue 7: 2020, Class AWorldwide: VCCI-CISPR 32, Class A CISPR 32: 2016, Class A AS/NZS CISPR 32: 2015, Class A GB/T 9254.1-2021, Class A CNS 15936: 2020, Class A KS C 9832 Lasers EN 60825-1:2014 / IEC 60825-1:2014 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) Immunity Generic CISPR 35: 2016 EN EN 55035:2017 +A11:2020 ESD IEC 61000-4-2 Radiated IEC 61000-4-3 EFT/Burst IEC 61000-4-4 Surge IEC 61000-4-5 Conducted IEC 61000-4-6 Power frequency magnetic field IEC 61000-4-8 Voltage dips and interruptions IEC 61000-4-11 Harmonics IEC 61000-3-2, EN 61000-3-2 Flicker IEC 61000-3-3, EN 61000-3-3 RoHS EN 63000:2018 / IEC 63000:2018 Mounting and Enclosure Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
