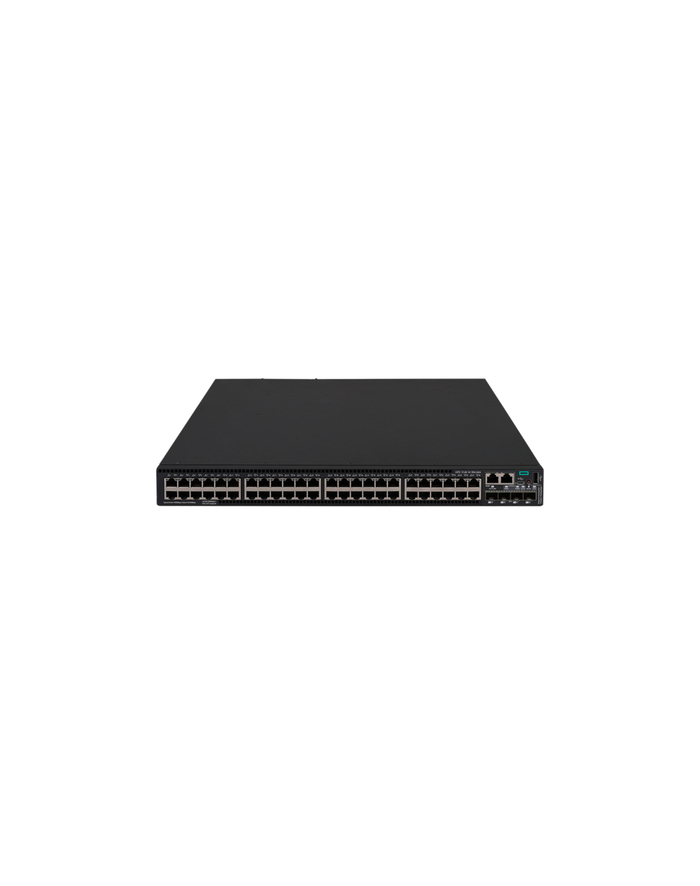

hewlett packard enterprise Przełącznik 5140 48G PoE+ 4SFP+ 1-slot HI SW R9L64A

hewlett packard enterprise Przełącznik 5140 48G PoE+ 4SFP+ 1-slot HI SW R9L64A główny
1422231-241119231120
Hewlett Packard Enterprise
Opinie
42796.95 zł
brutto za 1 szt
towar dostępny
Ilość:
<
Zapytaj nas o produkt
od 10.99 zł
około wt. 26.11 - pt. 29.11 u Ciebie
Oblicz ratę

Dane główne

1422231-241119231120
Hewlett Packard Enterprise
R9L64A
0190017587899
od 10.99 zł
2024-11-21
Dowiedz się więcej
Treści zawarte na stronie internetowej mają charakter informacyjny i
nie stanowią oferty handlowej w rozumieniu przepisów kodeksu cywilnego.

Opis

HPE FlexNetwork 5140 48G PoE+ 4SFP+ HI Switch (R9L64A) I/O ports and slots 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) 4 SFP+ 10GbE ports 1 port expansion module slot Additional ports and slots 1 dual-personality (RJ-45 or mini-USB) serial console port 1 RJ-45 out-of-band management port 1 USB 2.0 Power supplies 2 power supply slots 1 minimum power supply required Fan tray Airflow direction is from side to back Physical characteristics Dimensions 17.32(w) x 18.11(d) x 1.71(h) in. (44.00 x 46.00 x 4.36 cm) (1U height) Weight ≤9.6 kg Memory and processor 2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash Mounting and enclosure Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardwareincluded) Performance 1000 Mb Latency < 5 µs 10 Gbps Latency < 3 µs Throughput 180 Mpps Routing/Switching capacity 336 Gbps Routing table size 8K MAC address table size 32K Environment Operating temperature 23°F to 113°F (-5°C to 45°C) Operating relative humidity 5% to 95%, noncondensing Non-operating/Storage temperature -40°F to 158°F (-40°C to 70°C) Non-operating/Storage relative humidity 5% to 95%, noncondensing Acoustic Low-speed fan: 57.2 dB, High-speed fan: 68.9 dB; ISO 7779 Electrical characteristics Frequency 50/60 Hz Maximum heat dissipation ranges from 112 BTU/hr to 5943 BTU/hr depending on power supply configuration Voltage 100-240 VAC, rated (90-264 VAC, max)-48 to -60 VDC, rated (-36 to -72 VDC, max) (depending on power supply chosen) Maximum power rating 1742 W (dual AC) Idle power 40 W (dual AC) PoE power 1440W (30W max PoE power per port) Notes: - Idle power is the actual power consumption of the device with no ports connected. - Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated - PoE+ power range is from 360W to 1440W. PoE+ power is the power supplied by the internal power supplies. It is dependent on the type and quantity of power supplies. Device supports 1 or 2 internal modular power supplies. Safety UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; RoHS Compliance; AS/NZS 60950-1; GB 4943; EAC (EurAsian Conformity Certification) Emissions ETSI EN300 386 V1.6.1 (2012-09); ETSI EN 300 386 V2.1.1 (2016-07); EN 55032:2015 CLASS A; CISPR 32:2015 CLASS A; AS/NZS CISPR 32:2015 CLASS A; EN 61000-3-2:2014; EN 61000-3-3:2013; FCC PART15 Subpart B CLASS A; ICES-003 Issue 7 CLASS A; ANSI C63.4-2014; VCCI-CISPR 32:2016 CLASS A Generic IEC 61000-4-1:2006; IEC 61000-4-2:Ed2 2008; IEC 61000-4-3:2020; IEC 61000-4-3:2010; IEC 61000-4-4:2004; IEC 61000-4-4:2011; IEC 61000-4-4:Ed3.0 2012; IEC 61000-4-5:2014; IEC 61000-4-5:2017; IEC 61000-4-6:2013; IEC 61000-4-6:2013 COR1:2015; IEC 61000-4-8:2009; IEC 61000-4-11:2004; IEC 61000-4-11:2017; IEC 61000-4-11:2020 ESD Air 8KV; Con 6KV; Criteria B Immunity ETSI EN300 386 V1.6.1 (2012-09); ETSI EN 300 386 V2.1.1 (2016-07); EN 55035:2017; CISPR 35:2016; Management IMC-Intelligent Management Center; Smart MC, command-line interface; SNMP Manager Services Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Parametry techniczne

Parametry techniczne produktu

Opis

Seria przełączników HPE FlexNetwork 5140 HI zapewnia wysoką dostępność i skalowalność w warstwie dostępowej średnich i dużych sieci kampusowych przedsiębiorstw.

Przełączniki te zapewniają szybką łączność i elastyczność dzięki łączom nadrzędnym 10GbE i portom combo. Obsługa modułów dodatkowych zwiększa pojemność dzięki dodatkowym funkcjom. Jest to bardzo ekonomiczny przełącznik z licznymi funkcjami, takimi jak DRNI i IRF dla zwiększenia odporności, funkcje QoS dla większej niezawodności, iNQA dla wydajności sieci i wglądu w pojemność w czasie rzeczywistym, sprzętowy MACsec dla kompleksowych szyfrowanych zabezpieczeń, oraz dwa redundantne zasilacze z energooszczędnym Ethernetem dla lepszego oszczędzania energii.

Klasa przełącznika
Zarządzalny
Zastosowanie (switche)
Średnie i duże firmy (powyżej 16 portów)
Warstwa przełączania (switche)
  • L3,
  • L2
Architektura sieci (switche)
GigabitEthernet
Liczba portów 10/100/1000 MBps
48
Liczba portów 10GB
4
Liczba portów PoE+
48
Liczba portów SFP+
4
Port konsoli
Tak
Przepustowość (switche Gbps)
336 Gb/s
Prędkość przekazywania (Mpps)
180 Mpps
Bufor pakietów
4 MB
Rozmiar tablicy adresów MAC
32000
Obsługa ramek Jumbo
Tak
Rozmiar ramki Jumbo
8 KB
Obsługiwane protokoły i standardy
  • IEEE 802.1ad Q-in-Q
  • IEEE 802.1ak Multiple Registration Protocol (MRP) and Multiple VLAN Registration Protocol (MVRP)
  • IEEE 802.1AE MACsec
  • IEEE 802.1AX2008 Link Aggregation
  • IEEE 802.1D MAC Bridges
  • IEEE 802.1p Priority
  • IEEE 802.1Q (GVRP)
  • IEEE 802.1Q VLANs
  • IEEE 802.1s Multiple Spanning Trees
  • IEEE 802.1v VLAN classification by Protocol and Port
  • IEEE 802.1w Rapid Reconfiguration of Spanning Tree
  • IEEE 802.1X PAE
  • IEEE 802.3 Type 10BASE-T
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3ac (VLAN Tagging Extension)
  • IEEE 802.3ad Link Aggregation (LAG)
  • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • IEEE 802.3ae 10-Gigabit Ethernet
  • IEEE 802.3af Power over Ethernet
  • IEEE 802.3at Power over Ethernet Plus
  • IEEE 802.3az Energy Efficient Ethernet
  • IEEE 802.3i 10BASE-T
  • IEEE 802.3u 100BASE-X
  • IEEE 802.3x Flow Control
  • IEEE 802.3z 1000BASE-X RFC 768 UDP
  • RFC 783 TFTP Protocol (revision 2)
  • RFC 791 IP
  • RFC 792 ICMP
  • RFC 793 TCP
  • RFC 826 ARP
  • RFC 854 TELNET
  • RFC 855 Telnet Option Specification
  • RFC 894 IP over Ethernet
  • RFC 925 Multi-LAN Address Resolution
  • RFC 950 Internet Standard Subnetting Procedure
  • RFC 951 BOOTP
  • RFC 959 File Transfer Protocol (FTP)
  • RFC 1027 Proxy ARP
  • RFC 1042 IP Datagrams
  • RFC 1058 RIPv1
  • RFC 1071 Computing the Internet Checksum
  • RFC 1166 IP Addresses
  • RFC 1122 Requirements for Internet HostsCommunication Layers
  • RFC 1123 Requirements for Internet Hosts
  • RFC 1141 Incremental updating of the Internet checksum
  • RFC 1191 Path MTU discovery
  • RFC 1213 Management Information Base for Network Management of TCP/IP-based internets
  • RFC 1256 ICMP Router Discovery Protocol (IRDP)
  • RFC 1305 NTPv3
  • RFC 1350 TFTP Protocol (revision 2)
  • RFC 1519 CIDR
  • RFC 1533 DHCP Options and BOOTP Vendor Extensions
  • RFC 1542 BOOTP Extensions
  • RFC 1591 DNS (client only)
  • RFC 1643 Definitions of Managed Objects for the Ethernet-like Interface Types
  • RFC 1723 RIP v2
  • RFC 1812 IPv4 Routing
  • RFC 1866 Hypertext Markup Language2.0
  • RFC 1887 An Architecture for IPv6 Unicast Address Allocation
  • RFC 1901 Introduction to Community-based SNMPv2
  • RFC 1902-1907 SNMPv2
  • RFC 2131 DHCP
  • RFC 2236 IGMP Snooping
  • RFC 2375 IPv6 Multicast Address Assignments
  • RFC 2462 IPv6 Stateless Address Autoconfiguration
  • RFC 2474 Definition of the Differentiated Services Field (DS Field) in the IPv4 and IPv6 Headers
  • RFC 2475 Architecture for Differentiated Services
  • RFC 2597 Assured Forwarding PHB Group
  • RFC 2616 Hypertext Transfer ProtocolHTTP/1.1
  • RFC 2644 Directed Broadcast Control
  • RFC 2665 Definitions of Managed Objects for the Ethernet-like Interface Types
  • RFC 2668 Definitions of Managed Objects for
  • IEEE 802.3 Medium Attachment Units (MAUs)
  • RFC 2711 IPv6 Router Alert Option
  • RFC 2865 Remote Authentication Dial In User Service (RADIUS)
  • RFC 2866 RADIUS Accounting
  • RFC 2868 RADIUS Attributes for Tunnel Protocol Support
  • RFC 3046 DHCP Relay Agent Information Option
  • RFC 3246 Expedited Forwarding PHB
  • RFC 3410 Applicability Statements for SNMP
  • RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3)
  • RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP)
  • RFC 3416 Protocol Operations for SNMP
  • RFC 3417 Transport Mappings for the Simple Network Management Protocol (SNMP)
  • RFC 3418 Management Information Base (MIB) for the Simple Network Management
  • RFC 3484 Default Address Selection for Internet Protocol version 6 (IPv6)
  • RFC 3493 Basic Socket Interface Extensions for IPv6
  • RFC 3542 Advanced Sockets Application Program Interface (API) for IPv6
  • RFC 3576 Ext to RADIUS (CoA only)
  • RFC 3580 IEEE 802.1X Remote Authentication Dial In User Service (RADIUS) Usage Guidelines
  • RFC 3587 IPv6 Global Unicast Address Format
  • RFC 3596 DNS Extensions to Support IP Version 6
  • RFC 3704 Unicast Reverse Path Forwarding (URPF)
  • RFC 4113 Management Information Base for the User Datagram Protocol (UDP)
  • RFC 4213 Basic IPv6 Transition Mechanisms
  • RFC 4250 The Secure Shell (SSH) Protocol Assigned Numbers
  • RFC 4251 The Secure Shell (SSH) Protocol Architecture
  • RFC 4252 The Secure Shell (SSH) Authentication Protocol
  • RFC 4253 The Secure Shell (SSH) Transport Layer Protocol
  • RFC 4254 The Secure Shell (SSH) Connection Protocol
  • RFC 4291 IP Version 6 Addressing Architecture
  • RFC 4443 Internet Control Message Protocol (ICMPv6) for the Internet Protocol Version 6 (IPv6) Specification
  • RFC 4541 Considerations for Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD)
  • Snooping Switches
  • RFC 4594 Configuration Guidelines for DiffServ Service Classes
  • RFC 4675 RADIUS VLAN & Priority
QoS
  • RFC 2474 DS Field in the IPv4 and IPv6 Headers
  • RFC 3260 New Terminology and Clarifications for DiffServ
Bezpieczeństwo
  • IEEE 802.1X Port Based Network Access Control
  • RFC 1492 TACACS+
  • RFC 2138 RADIUS Authentication
  • RFC 2139 RADIUS Accounting
  • RFC 2865 RADIUS Authentication
  • RFC 2866 RADIUS Accounting
  • RFC 3260 New Terminology and Clarifications for DiffServ
  • RFC 4716 SSH Public Key File Format
  • Secure Sockets Layer (SSL) SSHv2 Secure Shell
Zarządzanie, monitorowanie, konfiguracja
  • Remote configuration and management: Enables configuration and management through a secure CLI located on a remote device
  • Manager and operator privilege levels: Provides read-only (operator) and read/write (manager) access on CLI management interfaces
  • Command authorization:Leverages RADIUS/HWTACACS to link a custom list of CLI commands to an individual network administrator's login; also provides an audit trail
  • Multiple configuration files: Stores easily to the flash image
  • Complete session logging: Provides detailed information for problem identification and resolution
  • Remote monitoring (RMON): Uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP): Advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications
  • sFlow (RFC 3176): Provides scalable ASIC-based wirespeed network monitoring and accounting with no impact on network performance; this allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposes
  • Management VLAN: Segments traffic to and from management interfaces, including CLI/Telnet and SNMP
Funkcje L3
  • Address Resolution Protocol (ARP): Determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
  • Dynamic Host Configuration Protocol (DHCP): Simplifies the management of large IP networks; supports client; DHCP Relay enables DHCP operation across subnets
  • Loopback interface address: Defines an address that can always be reachable, improving diagnostic capability
  • User Datagram Protocol (UDP) helper function: Allows UDP broadcasts to be directed across router interfaces to specific IP unicast or subnet broadcast addresses and prevents server spoofing for UDP services such as DHCP
  • Route maps: Provide more control during route redistribution; allow filtering and altering of route metrics
  • DHCP server: Centralizes and reduces the cost of IPv4 address management
  • Policy Based Routing" Provides a mechanism for indicating and executing forwarding/routing of data packets based on the policies defined by the network administrator
Typ obudowy
Rack (Switche/UPS)
Wentylator (switche)
Tak
Zasilacz (switche)
Wewnętrzny
Zasilanie

100240 VAC, znamionowe (90264 VAC, maks.) -48 do -60 VDC, znamionowe (-36 do -72 VDC, max) (w zależności od wybranego źródła zasilania)

Wymiary

440.0 x 460.0 x 43.6 mm

Waga
9.6 kg
