hewlett packard enterprise Serwer ML30 Gen10+ E-2314 8SFF P66396-421

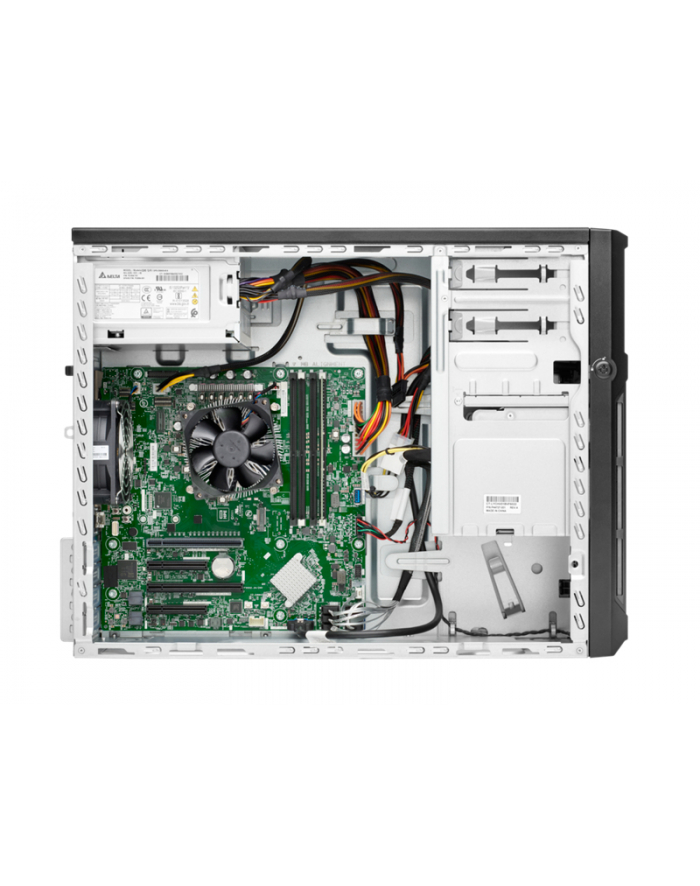

The HPE ProLiant ML30 Gen10 Plus server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premises and hybrid cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a lower cost.HPE PL ML30g10 Plus E-2314 (4C/2.8G) 16G 8SFF HP VROC 1x800W L9 2x1G TPM NBD311 Performance Models SKU Number P66396-421 Model Name HPE ProLiant ML30 Gen10 Plus E-2314 2.8GHz 4-core 1P 16GB-U 8SFF 800W RPS Server Chassis HPE ProLiant ML30 Gen10 Plus 8SFF Hot Plug Configure-to-order Server Processor E-2314 (4 core, 2.8 GHz, 65W) Number of Processors One Memory 16 GB (1x16 GB UDIMM, 3200 MT/s) Network Controller Embedded 1Gb 2-Port Ethernet Adapter Storage Controller Embedded Intel VROC SATA software RAID Notes: 4 SATA ports support drive bays, 2 SATA ports support optional HPE Universal SATA AIC HHHL M.2 SSD Kit (878783-B21), and additional 1 SATA via onboard M.2 slot. Included Hard Drives None ship standard, 8 SFF supported Internal Storage 8 SFF HDD Bays (Hot Plug) 1 M.2 PCIe 3.0 x2/SATA slot Optical Drive Bay Optional Slimline ODD Bay Kit (P06309-B21) consumes 1 media bay. Notes: Up to 1 optical drive bay Optical Drive Optional Expansion Slots 1 PCIe 4.0 slots, 3 PCIe 3.0 slots Power Supply 1x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit Notes: Add a second 800W Flex Slot Power Supply to get 1+1 power redundancy feature. Fans 1x non-hot plug non-redundant system fan Management Included - HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) Optional - HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced (requires download) Security TPM (Trusted Platform Module) Form Factor 4U Tower Warranty Server warranty includes 3-year parts, 1-year labor, 1-year onsite support with next business day response. Notes: APAC, Japan, and PRC Server Warranty include 3-year parts, 3-year labor, 3-year onsite support with next business day response. What's New Support Intel® Xeon® E-2300 processors up to 8 cores and Pentium processors. 3200 MT/s HPE DDR4 Standard Memory UDIMM offering 8GB, 16GB, and 32GB. Max 128GB memory capacity. Four expansion slots for flexible usage - two x16 and two x8 connectors, one powered by PCIe 4.0 x16. Support for one onboard M.2 NVMe/SATA SSD. Dedicated iLO port & serial port option kit. Chipset Intel® C256 Chipset Notes: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/ On System Management Chipset HPE iLO 5 ASIC Notes: Read and learn more in the HPE iLO QuickSpecs. Memory Type HPE DDR4 Standard Memory, Unbuffered (UDIMM) DIMM Slots Available 4 4 DIMMs (2 Channels/ 2 DIMMs per channel) Maximum Capacity (UDIMM) 128GB (4 x 32GB UDIMM @3200 MT/s) Notes: The maximum memory speed depends on processor model. Memory Protection ECC Expansion Slots Expansion Slots # Technology Bus Width Connector Width Form Factor Notes 1 PCIe 4.0 x16 x16 Full height, full length Processor 2 PCIe 3.0 X4 X8 Full height, half length PCH 3 PCIe 3.0 X4 X16 Full height, full length PCH 4 PCIe 3.0 X4 X8 Full height, half length PCH Notes: - Bus Width indicates the number of physical electrical lanes running to the connector. - Slot 1 supports only PCIe 3.0 when a Pentium processor is installed. Network Controller Embedded Broadcom BCM5720 Ethernet 1Gb 2-port BASE-T Adapter The HPE ProLiant ML30 Gen10 Plus server offers the customer a dual-port NIC as standard with the option to upgrade with a variety of networking options. Notes: Support document and downloads including firmware and drivers for the Broadcom BCM5720 Ethernet 1Gb 2-port BASE-T LOM Adapter can be downloaded from the supplier's support and services webpage. Internal Storage Devices Optical DrivesNone ship standard. Optional: SATA 9.5mm DVD-RW/DVD-ROM Optical Drive Hard DrivesNone ship standard Storage Controller Software RAID Intel® VROC SATA (formerly known as Intel® RSTe) Notes: - The embedded Intel Virtual RAID on CPU (Intel VROC) is the SATA software RAID controller supported in this server. - All models feature an embedded storage controller Intel VROC SATA. This product supports 4 SATA ports for drive bays, 2 SATA ports for media bays or HPE Universal SATA AIC HHHL M.2 SSD Kit (878783-B21), and additional 1 SATA via onboard M.2 slot. - BIOS Default is SATA AHCI. Embedded Intel SATA VROC is disabled by default. Embedded Intel SATA VROC can be enabled in BIOS/Platform Configuration (RBSU) for SW RAID features. - RAID support - 0/1/5/10. - RAID setting cannot be factory ordered/configured for use with Intel VROC SATA as Intel VROC SATA must be enabled in BIOS by customer. - Intel VROC SATA does not support RAID volume creation with different form factors of drives (e.g., SFF + M.2) - Intel VROC SATA RAID supports Windows Server and Linux, but does not support VMware. - Intel VROC SATA will operate in UEFI mode, Windows OS environment, and Linux OS environment. - Both Intel® Xeon® E processors and Intel® Pentium® processors support Intel® VROC SATA Raid. - See HPE Support Center for additional information regarding installation of Intel® VROC (SATA RAID): Enabling Intel VROC (SATA RAID) for SATA or SATA on BIOS/Platform configuration (RBSU) o Windows Edition o VMware Edition o Linux Edition - Intel VROC SATA RAID cannot be created in Intelligent Provisioning. It must be installed manually. - Intel VROC requires the server boot mode to be set to UEFI Mode. - Obtain the Intel VROC downloads (drivers, GUI) specific for your system OS. For direct download links, see the OS-specific VROC guide: https://www.hpe.com/support/IntelVROC-Gen10Plus-docs - Intel VROC supports RAID management though the following tools: o Non-OS specific: UEFI System Utilities o Windows: Intel VROC GUI, Intel VROC CLI. o Linux: mdadm CLI Essential RAID Controller HPE Smart Array E208i-p SR Gen10 ControllerHPE Smart Array E208e-p SR Gen10 Controller Performance RAID Controller HPE Smart Array P408i-p SR Gen10 ControllerHPE Smart Array P408e-p SR Gen10 Controller Notes: - Performance RAID Controllers require the HPE Smart Storage Battery (P01366-B21) or the HPE Smart Hybrid Capacitor (P02377-B21) which are sold separately. - ML30 Gen10 Plus does not support internal RAID Controller E208i-p and P408i-p in NHP models. - For additional details of HPE Smart Array, please see HPE Smart Array Gen10 Controllers QuickSpecs. Maximum Internal Storage Drive Capacity Configuration Hot Plug LFF SAS 72 TB 4 x 18 TB Hot Plug LFF SATA 72 TB 4 x 18 TB Hot Plug SFF SAS 19.2 TB 8 x 2.4 TB Hot Plug SFF SATA 16 TB 8 x 2 TB Non Hot Plug LFF SATA 16 TB 4 x 4 TB Hot Plug LFF SATA SSD 3.84 TB 4 x 960 GB Hot Plug SFF SAS SSD 7.68 TB 8 x 960 GB Hot Plug SFF SATA SSD 61.44 TB 8 x 7.68 TB M.2 SATA SSD 2.88 GB 3 x 960 GB (with HPE Universal SATA 6G AIC HHHL M.2 SSD Enablement Kit) M.2 NVMe SSD 1.92 TB 1 x 1.92 TB Notes: M.2 SSD is applicable to all models. Graphics Integrated Video Standard Video modes up to 1920 x 1200 @60Hz (32 bpp)16MB Video Memory HPE iLO 5 On System Management Memory 32 MB Flash4 Gbit DDR 3 with ECC protection Power Supply HPE 350W Gold-level Power Supply FIO KitNotes: Available in 92% and 94% efficiency. HPE 500W Flex Slot Platinum Hot Plug Low Halogen Redundant Power SupplyNotes: Available in 94% efficiency. HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply KitNotes: Available in 96% efficiency. HPE Entry-Level Power Supplies provide lower-cost options for customers trying to balance their need for enterprise class efficiency and reliability while maintaining the lowest possible hardware costs. All Entry-Level power supply options have been designed specifically for HPE ProLiant Gen10 & Gen10 Plus Essential Series servers. The HPE 350W FIO Power Supply is the standard, non-redundant AC power supply option for most HPE ProLiant Gen10 & Gen10 Plus Essential servers. It features Gold-level (92%) and Platinum-level (94%) certified power efficiency with a set of features optimized for the Gen10 Plus Essential-series tower servers. HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Plus Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center. All pre-configured servers ship standard with one or more country-specific 6 ft/1.83m C-13 power cords depending on regions. If a different power cord is required, please check the HPE Power Cords and Cables web page. To review the power requirements for your selected system, please use the HPE Power Advisor Tool. For information on power specifications and technical content visit HPE Server power supplies. Interfaces VGA Port 1 standard (rear) Serial Port 1 optional (rear) Network Port (RJ-45) 2 x 1 Gb ports as standard (rear, 1 shared for HPE iLO) Dedicated iLO Management Port (RJ-45) 1 optional (rear) USB 3.0 Port 6 (1 front, 4 rear, 1 internal) USB 2.0 Port 1 (1 front) MicroSD Slot Optional via HPE 32GB microSD RAID1 USB Boot Device Notes: MicroSD cards are not hot-pluggable, server must be powered down before removal. Operating Systems and Virtualization Software See HPE Servers Support & Certification Matrices- Microsoft Windows Server - VMware ESXi - Red Hat Enterprise Linux (RHEL) - SUSE Linux Enterprise Server (SLES) - Canonical Ubuntu Notes: - VMware supported only with Intel® Xeon® E processors, not supported with Intel® Pentium® processors. No Legacy Mode Support on VMware. https://kb.vmware.com/s/article/84233 - For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server. https://www.hpe.com/us/en/servers/server-operating-systems.html. Industry Standard Compliance ACPI 6.3 CompliantAdvanced Encryption Standard (AES)Active Directory v1.0ASHRAE A3/A4Notes: For additional technical thermal details regarding ambient temperatures, humidity and features support please visit: http://www.hpe.com/servers/ashrae DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)Energy StarEU Lot 9Notes: European Union (EU) eco-design regulations for server and storage products, known as Lot 9, establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 Plus servers are compliant with Lot9 requirements. Please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information regarding HPE Lot 9 conformance. IPMI 2.0Microsoft® Logo certificationsPCIe 3.0 CompliantPCIe 4.0 CompliantPXE SupportRedfish APISMBIOS 3.2SNMP v3TLS 1.2TPM 2.0 SupportTriple Data Encryptions Standard (3DES)UEFI (Unified Extensible Firmware Interface Forum) 2.6Notes: UEFI is the default for the ML30 Gen10 Plus.USB 2.0 CompliantUSB 3.0 CompliantVGA PortWOL Support HPE Server UEFI ROM Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 Plus servers have a UEFI Class 2 implementation and support both UEFI Mode (default). Notes: The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi. UEFI enables numerous new capabilities specific to HPE ProLiant servers such as Secure Boot and Secure Start enable enhanced security.Operating system specific functionalitySupport for > 2.2 TB (using GPT) boot drives.USB 3.0 StackEmbedded UEFI ShellMass Configuration Deployment Tool using iLO RESTful API that is Redfish API ConformantPXE boot support for IPv6 networksWorkload Profiles for simple performance optimization UEFI Boot Mode only: TPM 2.0 SupportiSCSI Software Initiator Support.HTTP/HTTPs Boot support as a PXE alternative.Boot support for option cards that only support a UEFI option ROMNotes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI. Embedded Management HPE Integrated Lights-Out (HPE iLO) Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO. Learn more at http://www.hpe.com/info/ilo. UEFI Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at http://www.hpe.com/servers/uefi. Intelligent Provisioning Hassle free server and OS provisioning for 1 or few servers with Intelligent Provisioning. Learn more at http://www.hpe.com/servers/intelligentprovisioning. iLO RESTful API iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi. Server Utilities Active Health System The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs. Active Health System Viewer Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv. Smart Update Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP). Learn more at http://www.hpe.com/info/smartupdate. iLO Amplifier Pack Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities. Learn more at http://www.hpe.com/servers/iLOamplifierpack. HPE iLO Mobile Application Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp. RESTful Interface Tool RESTful Interface tool is a scripting tool to provision using RESTful API for iLO 4 to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool. Scripting Tools Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell. HPE OneView Standard HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview. HPE Systems Insight Manager (HPE SIM) HPE SIM allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers, and also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. Security UEFI Secure Boot and Secure Start support.Immutable Silicon Root of TrustTamper-free updates - components digitally signed and verified.Secure Recovery - recover critical firmware to known good state on detection of compromised FW.FIPS 140-2 validationCommon Criteria certificationConfigurable for PCI DSS complianceAbility to rollback firmwareSecure erase of NAND/User dataTPM (Trusted Platform Module) 2.0 optionAdvanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browserFront bezel key-lock, standardPadlock slot, standardKensington Lock slot, standardIntel® SGX (Software Guard Extensions)Notes: Intel® SGX is supported in selective processors, please refer to the Standard Features - Processor section. Intel® TXT (Trusted Execution Technology) Warranty This product is covered by a global limited warranty and supported by HPE Pointnext and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. Notes: Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. 3) Non CSR parts must be serviced by a trained authorized service engineer. Additional information regarding worldwide limited warranty and technical support is available at: https://www.hpe.com/us/en/search-results.html?page=1&q=servers%20warranty&autocomplete=0 Optional Features Server Management HPE iLO Advanced HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.
