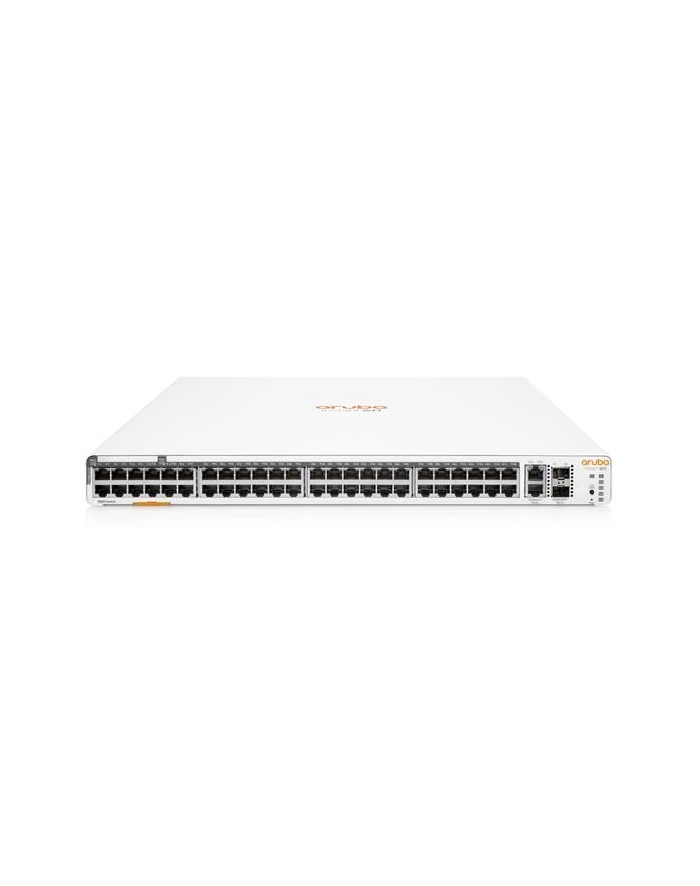

hewlett-packard Switch HP Aruba JL809A

Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch. I/O ports and slots 12 RJ-45 autosensing 100/1000/10GBASE-T ports (IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.an 10GBASE-T); Duplex: 100BASE-TX: half or full; 1000BASE-T: full only 10GBASE-T: full only 4 SFP+ 10GbE ports Dimensions 350.5(d) x 442.5(w) x 43.95(h) mm Weight 9.6 lb (4.3 kg) CPU Single Core ARMv7 Cortex-A9 @2Ghz 100 Mb Latency < 7.4 uSec 1000 Mb Latency < 4.2 uSec 10000 Mb Latency < 1.1 uSec Throughput (Mpps) 238 Mpps Capacity 320 Gbps Routing Table size (# of static entries) 512 IPv4/IPv6 MAC Address table size (# of entries) 16,000 entries Reliability MTBF (years) 88.8 Operating temperature 0-40°C, 0-10,000 ft Operating relative humidity 15% to 95% @ 104°F (40°C) non-condensing Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C) up to 15000 ft Nonoperating/Storage relative humidity 15% to 90% @ 149°F (65°C) non-condensing Altitude up to 10,000 ft (3 km) Acoustics1 LWAd = 4.0 Bel Notes1: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm) Electrical Characteristics Frequency 50Hz/60Hz AC voltage 100-127VAC / 200-240VAC Current 1.3A/0.4A Maximum power rating 100-127V: 130W 200-220V: 160W Idle power 100-127V: 60W 200-220V: 80W PoE power - Power Supply Internal power supply Safety EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 Emissions EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A Generic EN 55035, CISPR 35, KN35 EN EN 55035, CISPR 35 ESD EN/IEC 61000-4-2 Radiated EN/IEC 61000-4-3 EFT/Burst EN/IEC 61000-4-4 Surge EN/IEC 61000-4-5 Conducted EN/IEC 61000-4-6 Power frequency magnetic field EN/IEC 61000-4-8 Voltage dips and interruptions EN/IEC 61000-4-11 Harmonics EN/IEC 61000-3-2 Flicker EN /IEC 61000-3-3 Device Management Aruba Instant On Cloud; Web browser; SNMP Manager Mounting Positions and Supported Racking Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided Transceivers Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D) Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A) Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E) Aruba 10G SFP+ to SFP+ 1m DAC (J9281D) Aruba 10G SFP+ to SFP+ 3m DAC (J9283D)
