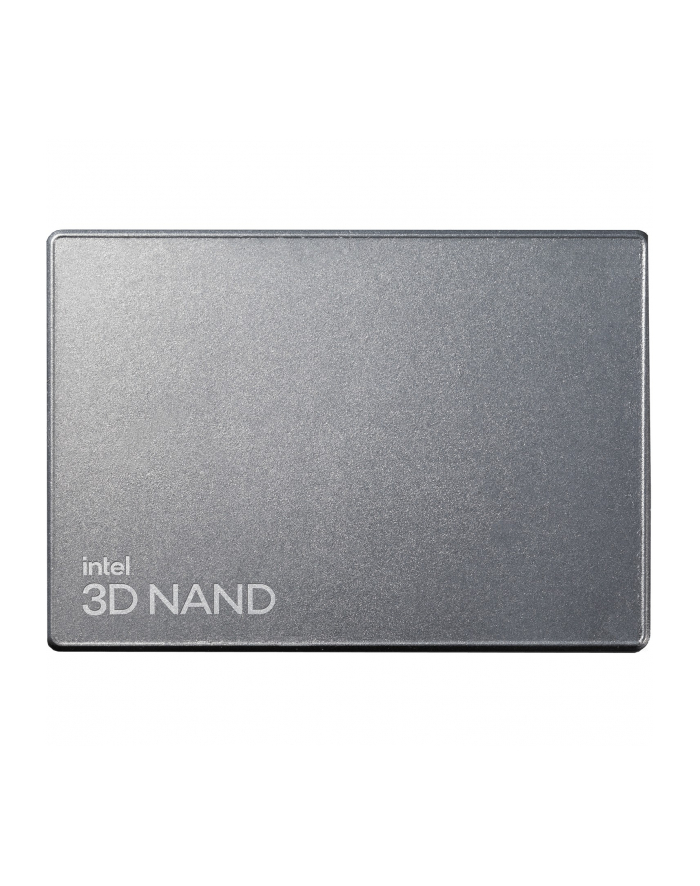

INTEL SSD D7-P5520 1.92TB 2.5inch PCI-E 4.0 x4 3D4 TLC Generic Single Pack

Intel® SSD D7-P5520 Series (1.9TB, 2.5in PCIe 4.0 x4, 3D4, TLC) Essentials Product Collection Intel® SSD P5520 Series Code Name Arbordale Plus Refresh Refresh Capacity 1.92 TB Status Launched Lithography Type 144L TLC 3D NAND Use Conditions Server/Enterprise Performance Specifications Sequential Bandwidth - 100% Read (up to) 5300 MB/s Sequential Bandwidth - 100% Write (up to) 1900 MB/s Random Read (100% Span) 700000 IOPS (4K Blocks) Random Write (100% Span) 114000 IOPS (4K Blocks) Latency - Read Latency - Write Power - Active 13W Power - Idle 5W Reliability Vibration - Operating 2.17 GRMS (5 - 700 Hz) Max Vibration - Non-Operating 3.13 GRMS (5 - 800 Hz) Max Shock (Operating and Non-Operating) 1,000 G (Max) at 0.5 msec Operating Temperature Range 0°C to 70°C Operating Temperature (Maximum) 70 °C Operating Temperature (Minimum) 0 °C Endurance Rating (Lifetime Writes) 3.5 PBW Mean Time Between Failures (MTBF) 2 million hours Uncorrectable Bit Error Rate (UBER) 1 sector per 10^17 bits read Warranty Period 5 yrs Package Specifications Weight 165g +/- 5g Form Factor U.2 15mm Interface PCIe 4.0 x4, NVMe Advanced Technologies Enhanced Power Loss Data Protection Yes Hardware Encryption AES 256 bit Temperature Monitoring and Logging Yes End-to-End Data Protection Yes Intel® Smart Response Technology No Intel® Rapid Start Technology No Intel® Remote Secure Erase No
