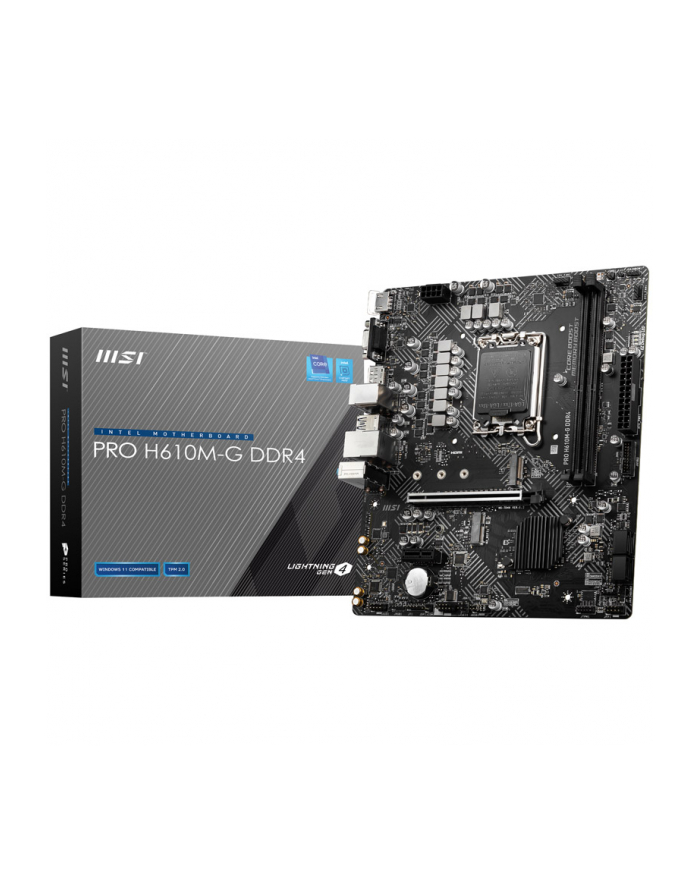

MSI PRO H610M-G DDR4

PRO H610M-G DDR4 Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket Supports DDR4 Memory, up to 3200(MAX) MHz Core Boost : With premium layout and digital power design to support more cores and provide better performance Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility Lightning Fast Experience: PCIe 4.0 Audio Boost: Reward your ears with studio grade sound quality Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength. PROCESSOR Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors*Processor socket LGA1700*Please go to www.msi.com to get the newest support status as new processors are released. CHIPSET Intel® H610 Chipset MEMORY 2x DDR4 memory slots, support up to 64GB*Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)Supports Dual-Channel modeSupports non-ECC, un-buffered memory*Please refer to www.msi.com for more information on compatible memory. EXPANSION SLOT 1x PCIe x16 slot (From CPU)Supports up to PCIe 4.0 x161x PCIe x1 slotSupports PCIe 3.0 x11x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1) ONBOARD GRAPHICS 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz */**1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz */***Available only on processors featuring integrated graphics. **Graphics specifications may vary depending on the CPU installed. SATA PORTS 4x SATA 6Gb/s ports** SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. M.2 SSD SLOT 1x M.2 slot (Key M, from chipset)*Supports up to PCIe 3.0 x4Supports up to SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devicesSupports Intel® Smart Response Technology for Intel Core™ processors*SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot USB Intel® H610 Chipset4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) AUDIO Realtek® ALC892/ ALC897 Codec7.1-Channel High Definition Audio LAN 1x Intel® I219V 1Gbps LAN controller POWER CONNECTORS 1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector FAN CONNECTORS 1x 4-pin CPU fan connector1x 4-pin system fan connector SYSTEM CONNECTORS 1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1x TPM module connector JUMPERS 1x Clear CMOS jumper LED FEATURES 1x 4-pin RGB LED connector2x 3-pin RAINBOW LED connectors4x EZ Debug LED BACK PANEL PORTS HDMIVGADisplayPortKeyboard/MouseUSB 3.2 Gen 1 5Gbps Type-ALAN portAudio connectorUSB 2.0MSI H510M-A PRO back panel ports DIMENSIONS mATX Form Factor9.29 x 7.95 in. (23.6 cm x 20.2 cm) OPERATING SYSTEM Support for Windows® 11 64-bit

Typ produktu: płyta główna
EAN: 4719072925024
Kod producenta: 7D46-009R
Gniazdo: 1700
Maksymalna obsługiwana liczba procesorów: 1
System operacyjny: gotowy na Windows 10, gotowy na Windows 11
Procesor: Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS ( Jezioro Olchowe), Core i9 13xxxK (Jezioro Raptor), Pentium Gold Gxxxx (Jezioro Olchowe), Celeron Gxxxx (Jezioro Olchowe)
Chipset: Intel® H610
Gniazda: 1x (w tym: 1x PCIe x16)
: 1
BIOS: 256Mbit UEFI AMI BIOS
: TAk
: TAk
Współczynnik kształtu: µATX
Użyj: komputer osobisty
Zasilanie: ATX12V (24-pin + 8-pin)
Pamięć: 64 GB
: 2x DDR4
SDRAM DDR4
: DDR4-3200 (maks.) / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
: 2
: 8.
: TAk
: 8192 Mbit
Połączenia (zewnętrzne): 1
: 1
: 2
: Oznaczenie USB 3.2 Gen 1 odpowiada wcześniejszym oznaczeniom USB 3.1 Gen 1 lub USB 3.0.
: 4
: 1
: 1
: 1
: 1
: 1
: 1
: 1
Połączenia (wewnętrzne): 4
: 1
: 2
: 1
: 2
Połączenia (opcjonalnie): 2
: 2
: TAk
Domyślny RGB: synchronizacja AURA
Kontroler SATA: Intel® H610
Kontroler USB: Intel® H610
Wbudowana grafika: Połączenia graficzne na płycie głównej mogą być używane tylko w przypadku korzystania z procesora ze zintegrowanym układem graficznym.
Dźwięk: Realtek ALC892/ALC897
LAN: Gigabitowa sieć LAN Intel® I219V
Informacje dodatkowe: W celu obsługi najnowszych rdzeni procesora może być wymagana aktualizacja systemu BIOS.
Wymiary: szerokość: 203mm x wysokość: 236mm
