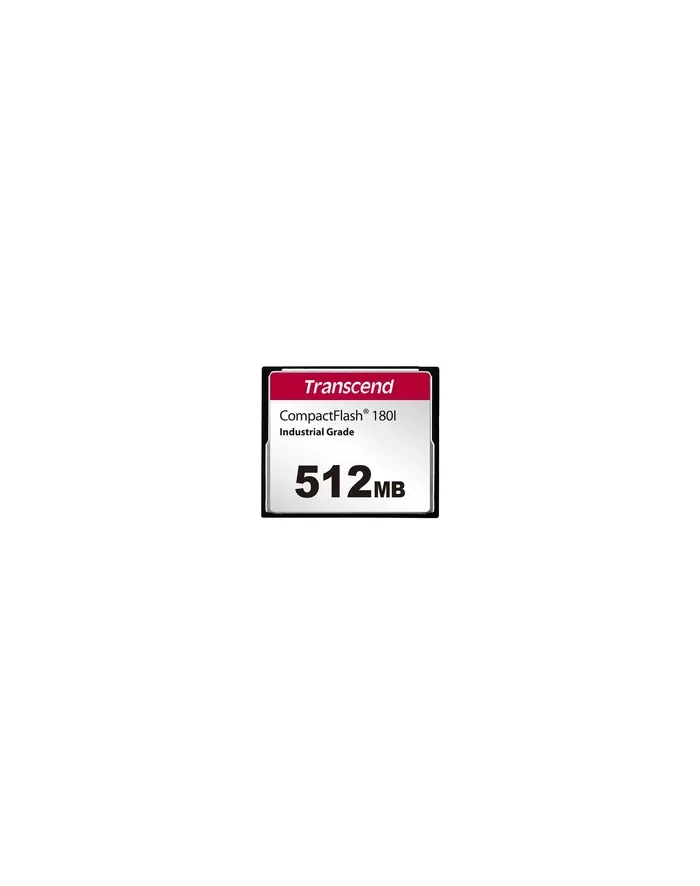

Transcend Karta Compact Flash CF180I 512 MB / R: 85 MB / W: 70 MB

CF180 & CF180I Transcend's SLC Mode technology is a cost-effective solution that offers performance close to that of SLC NAND flash at a more affordable price. Boasting a high-speed data transfer rate, Transcend's SLC Mode CF180 CompactFlash cards are perfect for embedded systems, medical instruments, road surveillance systems, and other industrial applications having high performance and capacity demands. Thanks to their use of Static Data Refresh technology, CF180 CF cards feature error correction capability, maintain data integrity, and have an extended lifespan. Based on Ultra DMA Mode 5 True IDE Mode supported: UDMA0-5 (default), MDMA0-4, PIO0-6 True IDE Mode: Fixed Disk (Standard) Operation modes supported: PC Card Memory mode, PC Card IO mode, and True IDE mode Built-in ECC (Error Correction Code) functionality Static Data Refresh Erase Count Monitoring Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices Wear-Leveling Security Command TECHNICAL SPECIFICATIONS Dimensions 42.8 mm x 36.4 mm x 3.3 mm (1.69" x 1.43" x 0.13") Pin Count 50 pin Form Factor Compact flash card Storage Flash Type MLC NAND flash (SLC mode) Capacity 128 MB Operating Environment Operating Voltage 3.3V±5%5V±10% Operating Temperature Extended Temp.-25°C (-13°F) ~ 85°C (185°F) Wide Temp.-40°C (-40°F) ~ 85°C (185°F) Storage Temperature -40°C (-40°F) ~ 85°C (185°F) Humidity 0% ~ 95% Shock 1500 G, 0.5 ms, 3 axis Vibration (Operating) 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency) Power Power Consumption (Max.) 0.6 watt(s) Performance Read Speed (Max.) up to 85 MB/s Write Speed (Max.) up to 70 MB/s Mean Time Between Failures (MTBF) 3,000,000 hour(s) Terabytes Written (TBW) up to 210 TBW Note Speed may vary due to host hardware, software, usage, and storage capacity.Terabytes Written (TBW) expresses the endurance under the highest capacity. Warranty Certificate CE/FCC/UKCA Warranty Three-year Limited Warranty
