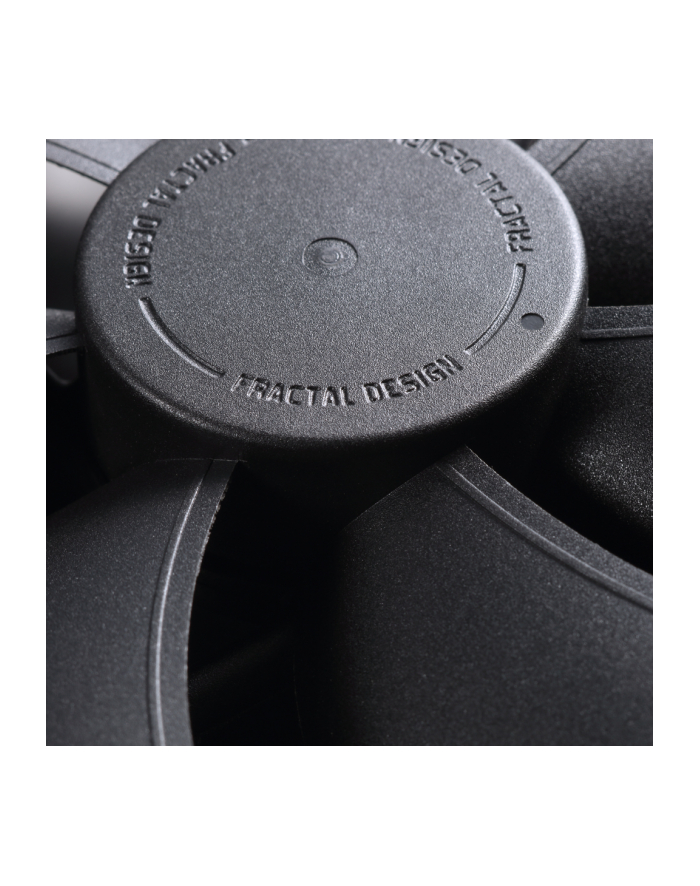

WENTYLATOR FRACTAL DESIGN DYNAMIC GP-14 BLACK 140mm

http://www.fractal-design.com/home/product/casefans/dynamic-series/dynamic-gp-14 Fractal Design Dynamic GP-12 and GP-14 are true all-purpose fans, with good airflow in any usage scenario. Their customized design lends to a beautifully aesthetic fan to help keep your system cool, yet quiet. Designed with leading technology techniques in mind, the Dynamic Series fans feature aerodynamic elements, similarly found in airplane wing designs, with significant noise-reducing elements, resulting in a fantastic price-performance ratio. The Dynamic Series fans come in two color combinations: all-black and the classic Fractal Design signature color scheme with white blades and black frame. Key features Featuring hydraulic bearings; a cost-efficient compromise between a standard sleeve bearing and a true FDB bearing Equipped with a counter-balancing magnet in the hub that reduces the axial tension on the bearing, further protecting the longevity of the bearing Optimized fan geometry for a good balance between static pressure and maximum airflow, resulting in good performance in all usage scenarios Aerodynamically shaped thin stator struts (including wire strut), mimicking the design commonly found on airplane wings, delivering correct angles allowing for air to easily pass through reducing noise and unwanted turbulence. Stator struts are angled perpendicular to the blades, helping to reduce noise commonly emitted when the blades pass the struts. In effect, minimal noise that may be emitted will be constant and therefore almost inaudible to the ear. Strategically placed notches near the fan hub on the trailing edge of the blades, further reducing and diffusing humming noise produced when the blades pass the stator struts Includes a "trip wire" on the rear side of the blades, near the leading edge. The trip wire technology, also commonly found in airplane wing designs, introduces a micro-turbulent layer that helps to combat the elements that negatively affect performance. The presence of the trip wire overall provides a more efficient and quiet fan environment. The customized design of the Dynamic Series fans contributes to a beautiful, cool build Available in 120mm and 140mm fan sizes Specifications Fan GP-12 GP-14 Size [mm] 120*120*25mm 140*140*25mm Colors available White blades, black frame Black blades, black frame White blades, black frame Black blades, black frame Screw hole pattern 105*105mm 125*125mm Connector 3-pin fan header 3-pin fan header Bearing Hydraulic Hydraulic Number of blades 7 7 Rotational speed [RPM] 1200 1000 Acoustical noise [dB (A)] 19.4 18.9 Maximum air flow [CFM] 52.3 68.4 Maximum pressure [mm H2O] 0.88 0.71 Actual input power [W] 1.44 1.7 Maximum rated input current [A] 0.18 0.20 Nominal input voltage [V] 12 12 Minimum startup voltage [V] 4 4 MTBF [hours] 40,000 40,000 Unit weight [g] 119 142 Package weight [g] 160 190 Cable length [mm] 500 500 Cable type Black ribbon cable Black ribbon cable Packaging dimensions [mm] ( Including hanging tab) 180*122*26 200*142*26 Packaging dimensions [mm] (Excluding hanging tab ) 147*122*26 167*142*26 Package contents Dynamic Series fan Screw pack with 4 metal fan screws

Dane techniczne:
Nazwa produktu: Fractal Design Dynamic GP-14 czarny
Kod EAN: 7350041083313
Kod producenta: FD-FAN-DYN-GP14-BK
Wymiary: 140x140x25mm
Obroty: 1000 obr./min
Przepływ powietrza: 116m3/h
Ciśnienie: 0.71mmH2O
Głośność: 18.9dB(A)
Złącze: 3-Pin
Zakres napięcia: 4-12V
Pobór mocy 1.7W


Fractal Design FD-FAN-DYN-GP14-BK. Odpowiedni dla: Obudowa komputera, Model: wentylator, Średnica wentylatora: 14 cm. Kolor produktu: Czarny, Długość kabla: 0,5 m. Zasilanie: 1,7 W, Maksymalne natężenie prądu: 0,2 A. Szerokość produktu: 140 mm, Długość urządzenia: 140 mm, Wysokość urządzenia: 25 mm
